Is there a special tool to install the centre stand spring?
Or is it just brute force and a lot of luck?
I have it horizontal so the distance between the frame eye and the stand eye is as short as possible.

I should have never removed that stand in the first place mad


Ger B

British motorcycles on eBay
Joined: Aug 2001
Posts: 8,722
Likes: 89
T
Britbike forum member
Offline
Britbike forum member
T
Joined: Aug 2001
Posts: 8,722
Likes: 89
Bend the spring from side to side, held in a vice and insert washers between the coils, to lengthen it.

Pull the washers out, once the spring is in place on the stand.

Or- sit behind the rear wheel and pull the spring with a long wire, while an assistant pokes the spring end into position with tools. It is inadvisable for him to use his fingers.

Last edited by triton thrasher; 09/19/15 7:22 am.

Amateur Loctite enthusiast.
Joined: Mar 2007
Posts: 951
Britbike forum member
Offline
Britbike forum member
Joined: Mar 2007
Posts: 951
I use a Snap On brake spring tool. Springs slide on and off easily.
[Linked Image]
[Linked Image]


1966 Triton
1962 BSA DBD34 Gold Star
1966 Triumph Bonneville
Joined: Nov 2009
Posts: 2,225
Likes: 6
Britbike forum member
Offline
Britbike forum member
Joined: Nov 2009
Posts: 2,225
Likes: 6
Although the stand on the Norton and Triumph is a bit different from your bike, I use to remove both mounting bolts of the stand, and hook up the spring first.
Next pull the center stand, and install a pin trough one of the holes of the stand and mounting hole on the frame.
Then pull the center stand and install the bolt on the other mounting point.
Next remove the pin and install the last bolt. Job done.
Trying to stetch the spring by hand usually results in a lot of @#&*<##!


Peter.
1974 Commando 850
1972 Trident T150T
1961 Goldie DBD34
1969 Benelli 250 sport special
Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
Quote
It is inadvisable for him to use his fingers

Not good for his ivory either I think laughing


Thanks you all chaps.

Swans tool is more for a workshop I think. I never saw it and
would not know where to get one.
Also: I do not think I will remove a pulling spring for the next ten years.
Did you buy it or make it?

Peter I tried to install the spring first and bolt the stand up
after that, but that resulted in a lot of @#&*<##! (Funny... do we speak the same language?)

The simple solution solved the problem.
The "why did I not think of that" trick with the washers.
With the washers the spring was 11 [mm] longer.

Thanks again. Case closed (for me that is) smile .


Ger B

Joined: Feb 2003
Posts: 2,822
Likes: 1
R
Britbike forum member
Offline
Britbike forum member
R
Joined: Feb 2003
Posts: 2,822
Likes: 1
Ger,
I was going to suggest brake spring pliers;
https://jet.com/product/product/70cf110312e14ff7978665b2d7a5c4e8?jcmp=pla:ggl:vehicles_parts_a3:vehicles_parts_vehicle_parts_accessories_a3_other:na:na:na:na:na:2&code=PLA15&k_clickid=b16b1441-e188-488b-9af5-1e172fcd50de&kpid=70cf110312e14ff7978665b2d7a5c4e8&gclid=Cj0KEQjwj_SvBRC7k4DfkLHiuMABEiQAvPOaqZTxkssX3y7bAe164FUmJky_kfiOATumCEJ-pBEqdv0aAh6L8P8HAQ

[Mine happen to be flat black... Made by Proto tools...]
They were made sometime far back, and are mostly used for drum brake applications.
But, as now seen, have many other fine uses. Mostly as a spring installer for many other applications.
..... I don't know if they can be used as a spring dismounter though... Never tried that...

One end is cupped, with a... "shelf" made on the underside, so the tool will not slip easily off the end of the slip-over spring mount. Usually, the 'top' of the tool that the spring slides off of, is rounded to promote the springs' easy travel off the tool, once the effort to overcome the spring's shortness/tension is made.
DON'T try to get in the way of the spring's travel!

Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
Thank you Rickman.

Silly thing happened later this afternoon.
An hour or two after I installed the spring with the washer trick, I discussed
this with my neighbours son. He works on his 1984 Corvette two garages away from mine.
He said he once helped another neighbour who owns a 19 sixties Ford Mustang;
and he remembered the mustang guy had spring pliers for drum brakes... his own or borrowed? We don't know.

Since that neighbour lost his last battle less than three weeks ago - he does not have a head stone yet, we say here - we are not going to ask his wife yet.


Ger B

Joined: Jun 2002
Posts: 10,470
Likes: 41
S
Britbike forum member
Offline
Britbike forum member
S
Joined: Jun 2002
Posts: 10,470
Likes: 41
Hi Ger,

Originally Posted by Ger B
Swans tool is more for a workshop I think. I never saw it and would not know where to get one.

Snap-On supply mechanics; certainly here in GB, Snap-On is a franchise so the local franchisee tours the local garages regularly; any garage or spares dealer with one or more mechanics will tell me when the 'Snap-On Man' is due; I meet him and buy direct from him.

But, for pulling springs, I've one of these. :bigt

Originally Posted by Ger B
I do not think I will remove a pulling spring for the next ten years.

My spring puller also pulls up the drain gratings in front of the garage doors ... smile

Hth.

Regards,

Joined: May 2005
Posts: 3,686
Likes: 2
S
Britbike forum member
Offline
Britbike forum member
S
Joined: May 2005
Posts: 3,686
Likes: 2
Snap On is a bit overpriced for the home mechanic, any auto parts store will have that tool at a reasonable price.


When given the choice between two evils I picked the one I haven't tried before
Joined: Sep 2001
Posts: 347
P
Britbike forum member
Offline
Britbike forum member
P
Joined: Sep 2001
Posts: 347
Hi Ger

I made one of These to solve this Problem. Not my idea , I stole it from the WM20 site http://www.wdbsa.nl/download/Spring%20puller.pdf

Took a bit of fiddling to get it to fit but it is very easy to use now.
I'll be passing Close to your place on 30th of the month heading for the overnight Ferry to Hull if you want to borrow it...of if I can bring you a few bottles of "Alt"

Cheers
Pete

[Linked Image]


[Linked Image]

[Linked Image]


Cheers
Pete
Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
Hi Pete.

This inspires me to fabricate one, so I'll be settled for the next time... whenever.
I have an 8[mm] threaded rod in the shed plus sheet material.

The 30-th will be next week Wednesday.
What time will you be around here?

You know you are welcome, but beware the council has been working the roads again. The village is a labyrinth now. sick


Ger B

Joined: Sep 2001
Posts: 347
P
Britbike forum member
Offline
Britbike forum member
P
Joined: Sep 2001
Posts: 347
Hi Ger

It all depends on when I manage to start off in Germany and the traffic. If I have time to spare I'l call you ( I have your number somewhere!) and maybe see if my new SatNav can defeat your council's evil plans grin

Cheers
Pete


Cheers
Pete
Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
If you have my mobile number... it does not work any longer.
And I do not have a new handy yet.
Maybe after this weekend.
My children are now in a meeting and I was sent out of the room... grin


Ger B

Joined: Sep 2001
Posts: 347
P
Britbike forum member
Offline
Britbike forum member
P
Joined: Sep 2001
Posts: 347
Got a birthday coming up? Or are the Kids plotting to make sure you are always contactable , ie. "on call" frown laughing

The number I have for you ends in 836, don't know if that is a Handy or landline.



Cheers
Pete
Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
Quote
Got a birthday coming up

Yes, I'm afraid so... frown
I hate birthdays.. Sit straight, give paw, wag tail...
mad

The number ending 836 is the land line. That's still valid.

I'll be seeing you.


Ger B

Joined: Sep 2004
Posts: 1,680
Likes: 151
Britbike forum member
Offline
Britbike forum member
Joined: Sep 2004
Posts: 1,680
Likes: 151

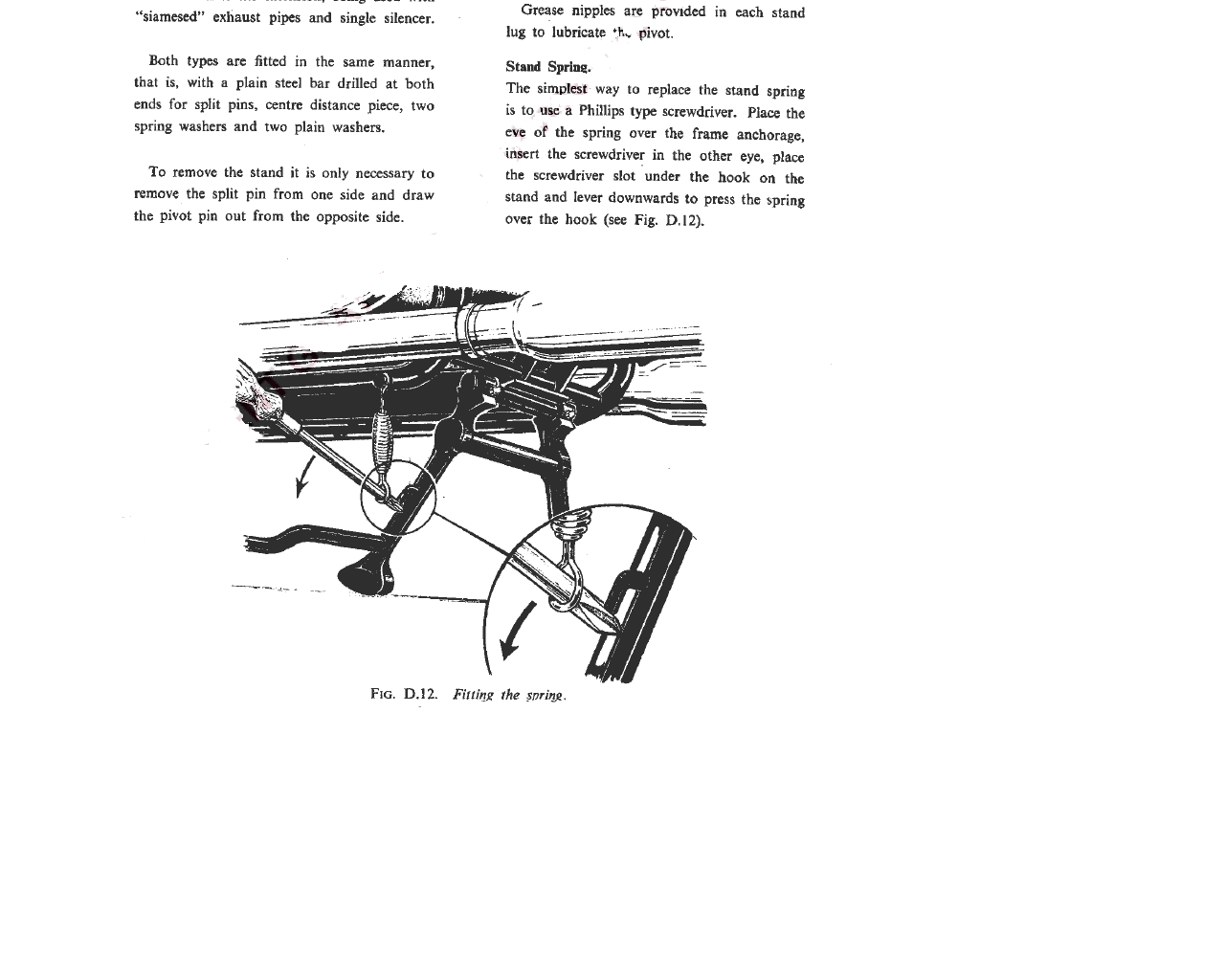

I have found the easiest way to install the centre stand spring is to use the method described in the original BSA A65 workshop Manual.

The BSA method is to use a large cross head screw driver placed through the spring eye and engage one of the cross head slots in the stand hook and then lever the screwdriver down over the hook, see extract and diagram below:-

[Linked Image]


1968 A65 Firebird
1967 B44 Shooting Star
1972 Norton Commando
Joined: Aug 2006
Posts: 1,556
Likes: 40
Life member
Offline
Life member
Joined: Aug 2006
Posts: 1,556
Likes: 40
That's the way I do er.

Bill E


69 A65T
71 B50T
85 K100RS
54/59 A10SR
69 B44VS
71 A65FS
95 Trident
Too much moderation is bad for you.

Joined: Feb 2003
Posts: 2,822
Likes: 1
R
Britbike forum member
Offline
Britbike forum member
R
Joined: Feb 2003
Posts: 2,822
Likes: 1
I also have done this, but all too often, the 'cross-head' slips off...

Joined: Jul 2012
Posts: 361
D
Britbike forum member
Offline
Britbike forum member
D
Joined: Jul 2012
Posts: 361
I have always had success using a length of strong cord (para cord) and pulling the spring into place. Once in place the cord can just be pulled through.

Joined: Aug 2014
Posts: 1,823
Likes: 1
T
Britbike forum member
Offline
Britbike forum member
T
Joined: Aug 2014
Posts: 1,823
Likes: 1
TT's washer method......... best of all. What I've always used, and never caused invention of new swear words!

Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
Quote
TT's washer method......... best of all.

It worked for me, but I was warned less than an hour ago: Do not use washers which are to high (thick).
This may spoil the spring / cause irreversable gaps so the spring becomes too long in it's unloaded state.


Ger B

Joined: Dec 2009
Posts: 359
Likes: 20
H
Britbike forum member
Offline
Britbike forum member
H
Joined: Dec 2009
Posts: 359
Likes: 20
Best method I have found is using a bench vise. Drill and tap 1/4" hole at the top of each jaw. Install long set/grub screws. Slip the spring on and easily pull it apart to appropriate length. Insert spacers - I used dimes (U.S. coins).

Joined: Sep 2005
Posts: 5,864
G
Ger B Offline OP
Britbike forum member
OP Offline
Britbike forum member
G
Joined: Sep 2005
Posts: 5,864
So you pull it and don't bend it.


Ger B

Joined: Sep 2004
Posts: 1,680
Likes: 151
Britbike forum member
Offline
Britbike forum member
Joined: Sep 2004
Posts: 1,680
Likes: 151
I found an automotive spring puller to also be handy when fitting centre/side stand springs, see This Example


1968 A65 Firebird
1967 B44 Shooting Star
1972 Norton Commando
Joined: Mar 2006
Posts: 1,678
Likes: 16
H
Britbike forum member
Offline
Britbike forum member
H
Joined: Mar 2006
Posts: 1,678
Likes: 16
I've tried the coin trick and found it time consuming and didn't work too well. The spring pullers kept getting caught under the spring eye. Here's how I do it now. Get a couple of heavy zip ties and make loops out of them. Hook the loops under the spring eye. Get under the bike and brace it with one foot. Pull the loops til you can hook the spring. Then cut the zip ties and pull them out. Five minute job.


1978 Bonneville T140E
1974 Trident
1970 BSA Thunderbolt
1971 Norton Commando
1972 Norton Commando
1973 Norton Commando
1974 Norton Commando
2018 Kawasaki Z900RS


Everything will be alright in the end. If its not alright, its not the end.
