Originally Posted By: Pete Suchawreck
Great project Charles! Can you show close ups of the front brake ass'y? I may go with a disc at some point too on my Betor front end.
Very nice detail work.

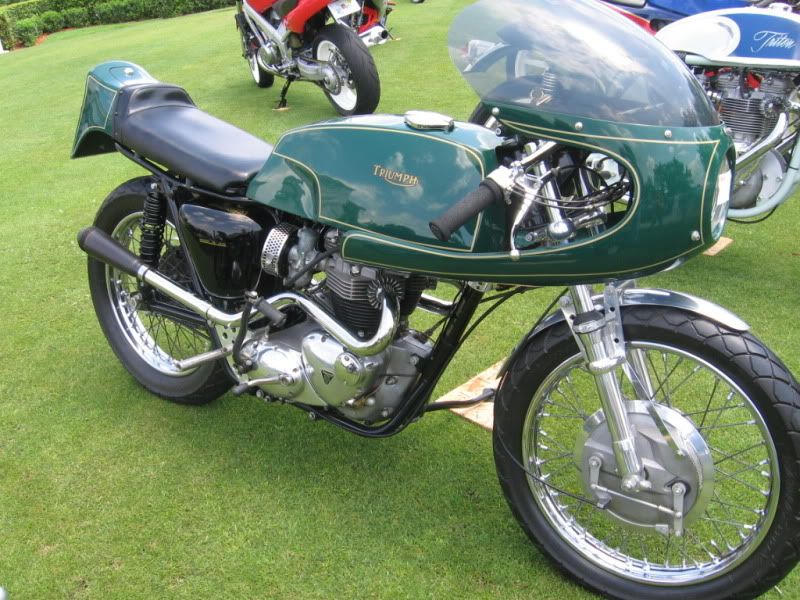

Hi Pete. I don't know if all this will be of any help on your Betor set-up, but maybe. As I mentioned, my engineer/machinist friend Paul and I worked up a combination front fork brace and disc brake caliper mount. The forks are 35mm road race Ceriani legs in 180mm MX triples; the brake is a Performance Machine 4-piston caliper and 330mm disc. Our fork brace will be of this general style (Cerianis on a dry frame).

My original design mounted the caliper ahead of the forks to preclude bending forces on the necessarily long caliper arm. To safely mount the caliper behind the leg would require a (rare and expensive) double lug left Ceriani fork leg. So Paul, in his typically generous and enthusiastic fashion, offered to fabricate a clamp-on fork lug along with the rest of the machine work! So this is our final 3D design with the disc.

And here is a 3/4 view of just the brace. The dimensions are accurate.

So far, Paul has fabricated the lug and the 1/2" thick cross brace for between the 5/16" side plates. Photos to follow.

Support Your #1 BritBike Forum!

Check out British motorcycles for sale:
British Motorcycles on e-Bay UK, British motorcycles on e-Bay North America
Check out British motorcycles for sale:
British Motorcycles on e-Bay UK, British motorcycles on e-Bay North America
Re: T140 cafe project, cont. [Re: J. Charles Smith] #556172
08/01/14 11:59 pm
08/01/14 11:59 pm
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
Paul has a terrific basement workshop that's cozy through Minnesota's harsh winters and a cool hangout this time of year. Here is a mill with the barely-begun fork lug clamped to its table.

There was a LOT of machining to get to this stage, with a lot more yet to go.

Paul had drilled and tapped the 4 bolt holes before any shaping of the bare billet began.

Machining the center hole. The clamp-on lug will be cut into two pieces after the basic shaping is done.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #556175
08/02/14 12:12 am
08/02/14 12:12 am
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
The smaller piece will bolt up to the left side plate of the fork brace.



With some hand finishing, I think it will look quite nice ... for a fork lug, I mean.

The cross brace, which bolts up with eight 6mm button head SS bolts, will be machined to the exact width after the brace is assembled and measured on the forks.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #556199
08/02/14 8:09 am
08/02/14 8:09 am
Joined: Jan 2012
Posts: 441
Western NY
P
Pete Suchawreck Online content
BritBike Forum member
Pete Suchawreck  Online Content
BritBike Forum member
P

Joined: Jan 2012
Posts: 441
Western NY
That is a great idea Charles! Nice work! I could make a version of that using a fork brace too. I have no lugs on the forks to mount to so something well bolted to the forks could work well. Thanks for showing me.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #563691
09/17/14 4:35 pm
09/17/14 4:35 pm
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
Paul emailed a bunch more photos of progress on the fork brace, so I figured I'd post a few. The 1st photo is of my PM disc bolted to Paul's XS650 Yamaha wheel. The 2nd shot is of my front wheel - XS650 hub, 8/9 SS spokes, Sun rim powder-coated to match the frame.

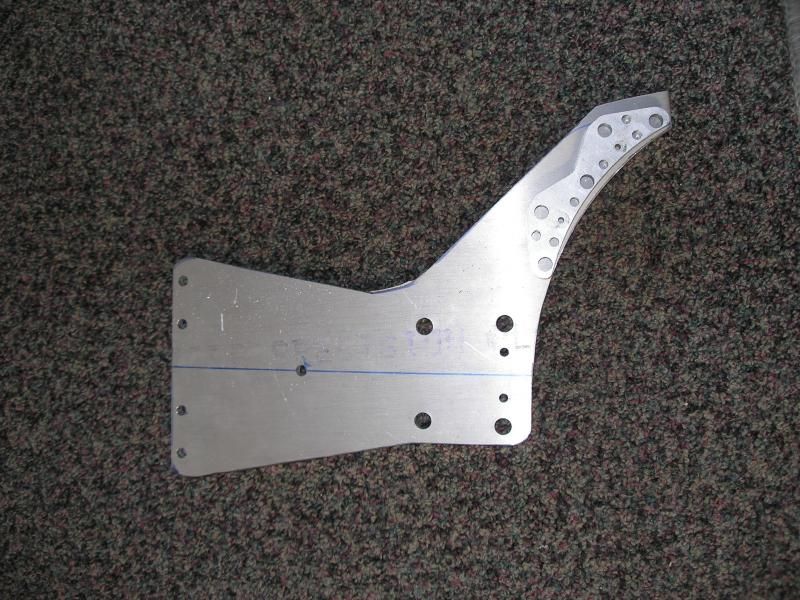

The left side plate with holes and half-moon for added lug.

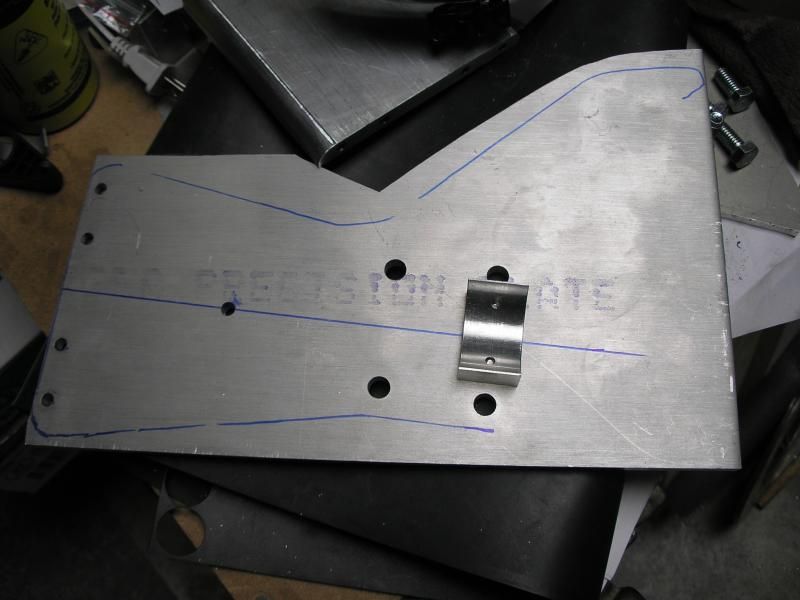

Rough 5/16" 6061 plate on wheel.

Left side plate with 1/2" thick cross brace.

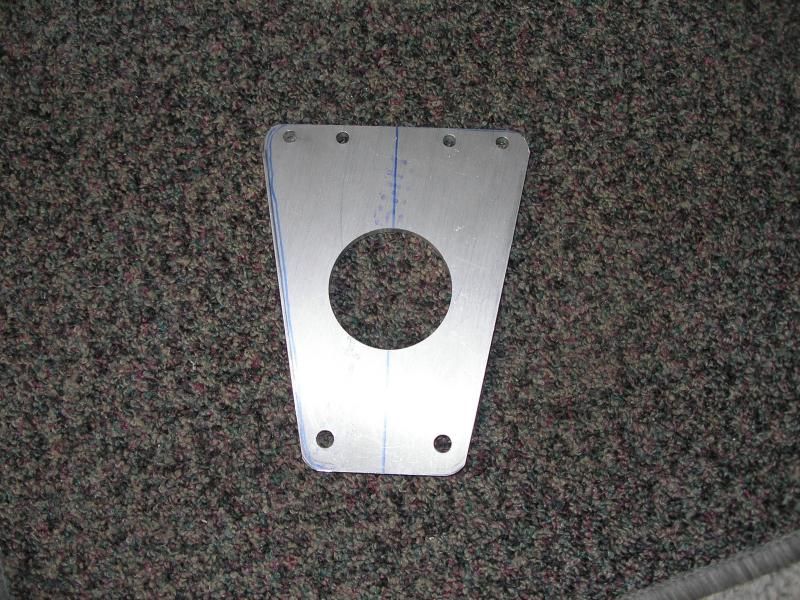

Machining clearance hole in right side plate. "Clearance sweeps" will be machined above the holes in the side plates for the fork gaiters.


The left side plate will be drilled and machined to match the stock PM caliper spacer. The load paths go through the 4 fork lug holes.

And finally, the still-rough brake side plate with the disc.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #564521
09/22/14 9:23 pm
09/22/14 9:23 pm
Joined: May 2013
Posts: 789
Overland Missouri
O
old mule Offline
BritBike Forum member
old mule  Offline
BritBike Forum member
O

Joined: May 2013
Posts: 789
Overland Missouri
Very nice...a lot of real good British bikes come out of Minnesota workshops...must be the winters.

Re: T140 cafe project, cont. [Re: old mule] #564641
09/23/14 5:19 pm
09/23/14 5:19 pm
Joined: Jan 2012
Posts: 441
Western NY
P
Pete Suchawreck Online content
BritBike Forum member
Pete Suchawreck  Online Content
BritBike Forum member
P

Joined: Jan 2012
Posts: 441
Western NY
WOW! That's gonna give you some stopping power. Excellent project. I'm going to have to add all the brackets for mounting the calipers. Clever doubling as a fork brace.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #571326
11/09/14 10:10 pm
11/09/14 10:10 pm
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
The machining of the "Brace 'n Brake" is pretty much finished. The exact width of the cross brace will be measured here when the rest of the components arrive from Paul's place in Minnesota. The "clearance sweeps" in the side plates are for fork gaiters. Paul has tightened the clearances where the bolt-on lug circles the fork leg to a maximum of .001". O'boy, more stuff to polish!



Last edited by J. Charles Smith; 11/09/14 10:21 pm.
Re: T140 cafe project, cont. [Re: J. Charles Smith] #571378
11/10/14 8:35 am
11/10/14 8:35 am
Joined: Jan 2012
Posts: 441
Western NY
P
Pete Suchawreck Online content
BritBike Forum member
Pete Suchawreck  Online Content
BritBike Forum member
P

Joined: Jan 2012
Posts: 441
Western NY
beautiful job Charles! Well designed. Got me thinking...appreciate the inspiration! Currently building a better seat for my T140 so it'll be during the winter before I get that far.

Re: T140 cafe project, cont. [Re: J. Charles Smith] #571432
11/10/14 2:19 pm
11/10/14 2:19 pm
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
Thanks, Pete. Please post some shots of your project as it progresses!

Re: T140 cafe project, cont. [Re: J. Charles Smith] #611690
08/05/15 11:43 pm
08/05/15 11:43 pm
Joined: Dec 2013
Posts: 4,405
ohio, usa
kevin roberts Offline

DOPE
kevin roberts  Offline

DOPE

Joined: Dec 2013
Posts: 4,405
ohio, usa
hey bud, you're over your pm limit. i can't nag you about your beautiful machine.

what's happening with this?

enquiring minds want to know.


"Are bikes so nice as all that?" asked the mole, shyly...

"Nice? They're the only thing," said the Water Rat Solemnly, as he leaned forward on the handlebars. "Believe me, my young friend, there is nothing -- absolutely nothing -- half so much worth doing as simply messing about with bikes."
Re: T140 cafe project, cont. [Re: J. Charles Smith] #611693
08/06/15 12:12 am
08/06/15 12:12 am
Joined: May 2015
Posts: 1,459
Florida PanHandle
Zombie Offline
BritBike Forum member
Zombie  Offline
BritBike Forum member

Joined: May 2015
Posts: 1,459
Florida PanHandle
Immaculate shop, new machines, great lighting, CAD designs, fantastic ideas, exceptional execution... I don't think this is real. It's a joke being played by a Unicorn drinking Single Malt, and laughing.

Has to Be!

Re: T140 cafe project, cont. [Re: J. Charles Smith] #611742
08/06/15 11:34 am
08/06/15 11:34 am
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
Thanks for the encouraging words, and I wish I could say I've made meaningful progress, but I've actually been in another down time. There is light at the end of the tunnel, though, once I get these #@^*%! house projects done!

Re: T140 cafe project, cont. [Re: J. Charles Smith] #611888
08/07/15 3:51 pm
08/07/15 3:51 pm
Joined: May 2015
Posts: 1,459
Florida PanHandle
Zombie Offline
BritBike Forum member
Zombie  Offline
BritBike Forum member

Joined: May 2015
Posts: 1,459
Florida PanHandle
House projects... right!

Re: T140 cafe project, cont. [Re: J. Charles Smith] #612139
08/09/15 2:56 pm
08/09/15 2:56 pm
Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
J
J. Charles Smith Offline OP
BritBike Forum member
J. Charles Smith  Offline OP
BritBike Forum member
J

Joined: Jul 2006
Posts: 1,107
Westminster, MD, USA
Now we'll retain an image of a single-malt sipping unicorn in our heads forevermore. Talk about evil conspiracies ...

Re: T140 cafe project, cont. [Re: J. Charles Smith] #612145
08/09/15 3:26 pm
08/09/15 3:26 pm
Joined: Dec 2013
Posts: 4,405
ohio, usa
kevin roberts Offline

DOPE
kevin roberts  Offline

DOPE

Joined: Dec 2013
Posts: 4,405
ohio, usa
hurry up with that household stuff and move on to what's really important.

i've been watching this machine for ages. it's an exercise in mechanical beauty


"Are bikes so nice as all that?" asked the mole, shyly...

"Nice? They're the only thing," said the Water Rat Solemnly, as he leaned forward on the handlebars. "Believe me, my young friend, there is nothing -- absolutely nothing -- half so much worth doing as simply messing about with bikes."
Re: T140 cafe project, cont. [Re: J. Charles Smith] #614715
08/27/15 3:20 pm
08/27/15 3:20 pm
Joined: Jan 2012
Posts: 123
england
lilo Offline
BritBike Forum member
lilo  Offline
BritBike Forum member

Joined: Jan 2012
Posts: 123
england
Love it.
Keep up the good work.
