Big End Bush 1968 TR25W Hole or No Hole? #609125
07/18/15 10:15 am
07/18/15 10:15 am
Joined: Apr 2006
Posts: 417
Toronto, Canada
BruceinT.O. Offline OP
BritBike Forum member
BruceinT.O.  Offline OP
BritBike Forum member

Joined: Apr 2006
Posts: 417
Toronto, Canada
Hi
I've got my motor completely disassembled and ready to put it back together. I noticed that the worn big end bushes that are currently on the rod have holes in them, assumably to allow for oil flow from the holes in the crank. I've got two new ones that don't have a hole in them at all? Do I have the wrong part? They fit snug, they just don't have any holes?


Bruce

1968 Triumph Trophy
Support Your #1 BritBike Forum!

Check out British motorcycles for sale:
British Motorcycles on e-Bay UK, British motorcycles on e-Bay North America
Check out British motorcycles for sale:
British Motorcycles on e-Bay UK, British motorcycles on e-Bay North America
Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609143
07/18/15 2:13 pm
07/18/15 2:13 pm
Joined: Dec 2004
Posts: 9,501
Scotland
kommando Online content
BritBike Forum member
kommando  Online Content
BritBike Forum member

Joined: Dec 2004
Posts: 9,501
Scotland
Well you do not have the factory shells but in my opinion you have the right ones, the bottom shell should be plain anyway, the top one should have one hole but you can fit a plain one here too. To make sure you do not reduce the oil going up to the piston you can file a wide but vertical shallow groove on the side of the con rod alongside the top shell, this should be 1mm deep and 5 or 6mm wide, as the oil exits the shells this groove will direct the oil upwards. Radius the corners of the groove generously with no sharp edges.



This pic shows an example in a car rod, its the round bottom groove part way over but you do yours central. You can see the generous rounding and the groove does not even go near the shell as its within the chamfer on the OD of the big end.

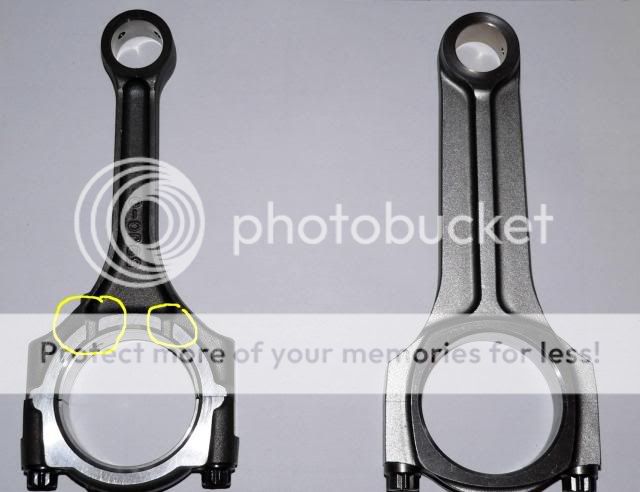

And an example with 2 grooves



and




Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609180
07/18/15 8:46 pm
07/18/15 8:46 pm
Joined: May 2015
Posts: 1,459
Florida PanHandle
Zombie Offline
BritBike Forum member
Zombie  Offline
BritBike Forum member

Joined: May 2015
Posts: 1,459
Florida PanHandle
Another tip in the build folder. Like it!

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609212
07/19/15 9:29 am
07/19/15 9:29 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Just be sure your rings can handle the extra volume! Triumph tried this on their twin and had to send the dealers a peen with which we had to close the hole. Rather than tearing the engine down they had us do it by removing only the cylinder.

For the most part people have abandoned the random approach for directly spraying oil at the underneath portion of the piston.

https://search.yahoo.com/yhs/search?p=sp...p;hsimp=yhs-003


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: John Healy] #609216
07/19/15 9:49 am
07/19/15 9:49 am
Joined: Sep 2014
Posts: 455
Michigan, USA
J
Jeff K. Offline
BritBike Forum member
Jeff K.  Offline
BritBike Forum member
J

Joined: Sep 2014
Posts: 455
Michigan, USA
Why not just carefully drill a hole in the top bush and use it like the factory intended. That small hole in the top has been used by Norton to the last, even on the 850 without any problems.
Jeff

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609241
07/19/15 12:25 pm
07/19/15 12:25 pm
Joined: May 2015
Posts: 1,459
Florida PanHandle
Zombie Offline
BritBike Forum member
Zombie  Offline
BritBike Forum member

Joined: May 2015
Posts: 1,459
Florida PanHandle
I think most aftermarket bearings come un drilled due to differences in crank shaft drilling, and they leave it up to us to locate the correct spot to drill.
I would absolutely drill them, and chamfer both sides of the new hole. The crank side more so than the rod side.

For the oil spray reliefs... I assumed these were to send more oil for the wrist pin/small end bush that for the underside of the piston.
I imagine this has to be planned, and executed carefully to direct the oil onto the correct area. I can easily understand (as mr. Healy pointed out) willy-nilly spraying oil around in the crankcase could lead to problems. Especially for the fellas using Dino Oil.

Perhaps an old crank, and rod set up, and some experimenting to get the correct placement of these "slots" is in order. One rod, some fast set epoxy, a dremel tool, and a pressure feed system should sort that out quickly...

I like modifying everything I can, and oiling systems generally respond very well to well planned improvements. Well planned is the key.

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609256
07/19/15 12:58 pm
07/19/15 12:58 pm
Joined: Dec 2004
Posts: 9,501
Scotland
kommando Online content
BritBike Forum member
kommando  Online Content
BritBike Forum member

Joined: Dec 2004
Posts: 9,501
Scotland
The best setup on the B25 is the last incarnation of the T100 con rod, this has no holes which are a weak point in a B25. Once you eliminate the hole you then have the decision about if the oil from the hole was needed or not, thats where the con-rod groove comes in.

Here is the result of the hole being a fatigue propagation point. I would be risking a decision on the groove before adding the hole, worn rings over con-rod sticking out of cases wins every time wink




Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: kommando] #609304
07/19/15 8:20 pm
07/19/15 8:20 pm
Joined: Sep 2014
Posts: 455
Michigan, USA
J
Jeff K. Offline
BritBike Forum member
Jeff K.  Offline
BritBike Forum member
J

Joined: Sep 2014
Posts: 455
Michigan, USA
The last year for the 250s, 1971 got the oiling right. But the rod still used the oil hole in the top. The triumph 500 also used the hole hole in the top. But oddly enough only on one rod. The later rods can be quickly identified by the peaks on each side of the upper half when looking at it from the side. The earlier ones are still round in this area. You can use the later rods on the earlier cranks, you will have to clearance them to the flywheels.
For my normal riding, the stock set up works fine. If I was riding like I was 45 years ago, then I would get a hold of Ed V. and have him build a crank with a Carrillo rod.
Jeff

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609305
07/19/15 8:21 pm
07/19/15 8:21 pm
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Because the supply of late T100R rods have all, but dried up we used late (no hole) TR25 rods which are an exact replacement. They have no problems routinely being pushed over 9,000 rpm.


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: John Healy] #609309
07/19/15 8:52 pm
07/19/15 8:52 pm
Joined: Sep 2013
Posts: 1,700
Pacific northwest
Q
quinten Offline
BritBike Forum member
quinten  Offline
BritBike Forum member
Q

Joined: Sep 2013
Posts: 1,700
Pacific northwest

Am I missing something ?
If the rod already has an oil hole , why not drill the shell and use it ?
Rather than file 1 or 2 more stress points in the rod ?

.

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: quinten] #609318
07/19/15 10:00 pm
07/19/15 10:00 pm
Joined: Sep 2014
Posts: 455
Michigan, USA
J
Jeff K. Offline
BritBike Forum member
Jeff K.  Offline
BritBike Forum member
J

Joined: Sep 2014
Posts: 455
Michigan, USA
I did not know that you could get a T25 rod with out the oil hole. I have a couple of NOS ones and many used ones(all 1971)and they all have the hole drilled in them. I also have several 1973 Cranks/rods and a few NOS rods. The T100 had a oil hole on the Drive Side connecting rod, but not the Timing Side.
Jeff

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609319
07/19/15 10:06 pm
07/19/15 10:06 pm
Joined: Apr 2006
Posts: 417
Toronto, Canada
BruceinT.O. Offline OP
BritBike Forum member
BruceinT.O.  Offline OP
BritBike Forum member

Joined: Apr 2006
Posts: 417
Toronto, Canada
Thanks for the advice. I didn't want to risk some primitive grinding on my part and ruining a good rod.
I am not happy with the play in the rod on the crank once I tighened it up. Once tight, the rod barely moved on the crank!
I am going to order a new set of big end bushes and will drill them out to replicate the old.


Bruce

1968 Triumph Trophy
Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609320
07/19/15 10:37 pm
07/19/15 10:37 pm
Joined: Sep 2014
Posts: 455
Michigan, USA
J
Jeff K. Offline
BritBike Forum member
Jeff K.  Offline
BritBike Forum member
J

Joined: Sep 2014
Posts: 455
Michigan, USA
Old school, buy Plastigage. Lay it on the bearing , tighten, remove, use the gauge on the paper it came in to measure. This will tell you how much clearance that you actually have.
Tighten up, place a old pumper oil can on the end feed hole of the crank and pump oil in until it flows out around the rod. Rod should drop down by it's own weight.
Jeff

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609330
07/20/15 1:08 am
07/20/15 1:08 am
Joined: May 2015
Posts: 1,459
Florida PanHandle
Zombie Offline
BritBike Forum member
Zombie  Offline
BritBike Forum member

Joined: May 2015
Posts: 1,459
Florida PanHandle
This thread went into two different oil relief areas. I'm happy to see Mr. Bruce did not get distracted.

The rest is valuable information none the less.

I love the pict. of the split con rod. That's a first for me.

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609355
07/20/15 8:58 am
07/20/15 8:58 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
250 models had a major flaw in the crankshaft/flywheel design. It had a major effect on oil pressure and life of the connecting rod bearing.

The sludge tube was located in the timing side flywheel. The flow of oil into the sludge tube spanned the gap between the crankshaft o.d. and the flywheel i.d.. The machining was so poor that oil destined for the rod bearing would spray out from between the two.

While they never did address the cause they did finally remove the oil hole from the rod and the bearing shell. It wasn't enough, but all that could be expected from a company that was broke.

The problem wasn't unknown to the dealers and people who raced 250's and they plugged up the sludge tube and installed an external filter. The big end finally got enough oil to survive. This is a service Ed at E&V, and others continue to provide to people who want a reliable 250.

Follow the factories lead, don't drill the bearing shell!


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609358
07/20/15 9:42 am
07/20/15 9:42 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Quote:
The T100 had a oil hole on the Drive Side connecting rod, but not the Timing Side.


No!


If you are interested in Triumph 250 models please take the time to read this Service Bulletin. Triumph distributors had already realized the problem with the oil pressure (which BSA (they built the engines) never did anything to cure) with the 250 as early as October 1968. Read between the lines as Service Bulletins often understate a problem. The 250 quickly garnered the nickname "Twud" by dealers who saw plenty of 250 connecting rods. Some of the more clever dealers were plugging the sludge tube and fitting 500 rods and bearing shells as BSA was running out of replacement rods. You see from the bulletin the factory choose using some sealant to solve the problem clap clap

Triumph 1968 Service Bulletin


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609361
07/20/15 9:56 am
07/20/15 9:56 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Quote:
I am not happy with the play in the rod on the crank once I tighened it up. Once tight, the rod barely moved on the crank!


What torque did you use! Rod bolts with UNF threads us 22 ft/lb while BSC rod bolts use 26 ft/lb.


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609410
07/20/15 5:26 pm
07/20/15 5:26 pm
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts


Don't you love a little detonation...


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: John Healy] #609438
07/20/15 9:51 pm
07/20/15 9:51 pm
Joined: Sep 2014
Posts: 455
Michigan, USA
J
Jeff K. Offline
BritBike Forum member
Jeff K.  Offline
BritBike Forum member
J

Joined: Sep 2014
Posts: 455
Michigan, USA
This service update was from 1968. They changed a lot for 1971, better pump, rod etc. And yet they still kept the oil hole in the rod?
Jeff

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609456
07/21/15 2:11 am
07/21/15 2:11 am
Joined: Dec 2004
Posts: 9,501
Scotland
kommando Online content
BritBike Forum member
kommando  Online Content
BritBike Forum member

Joined: Dec 2004
Posts: 9,501
Scotland
JH
Quote:
Triumph distributors had already realized the problem with the oil pressure (which BSA (they built the engines) never did anything to cure) with the 250 as early as October 1968.


It was a BSA made in Small Heath with Triumph badges.

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: kommando] #609466
07/21/15 5:31 am
07/21/15 5:31 am
Joined: Aug 2014
Posts: 1,688
OZ
Triless Online content
BritBike Forum member
Triless  Online Content
BritBike Forum member

Joined: Aug 2014
Posts: 1,688
OZ
And Triumph had to field the warranty claims. Another of Lionel Jofeh"s inspired ideas!

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609481
07/21/15 9:15 am
07/21/15 9:15 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Yes, K but we are talking about the engines. I had a salesman who loved selling 250's. His biggest year, if I remember, was 1969 where he sold 50 of the things. He was a sadistic young Polish lad who actually had the guts pa to sell one to Edsel Ford. Edsel was going to school at Babson College near our shop. I think his real motivation was to irritate me, but he sold his share of twins and triples.
clap
While BSA spent a lot of money "tarting" up the visuals. An old version of spending time at the gym, while they should have been spending more time at the cardiac surgeon's office. They should have spent more time at the heart of the problem... rod and sludge tube. The problem was discovered, and cured, by the service team at TriCor in Baltimore two years before the 1971 was introduced. Dealers like ourselves were getting rods without holes, blocking the sludge tube and fitting an external oil filter while BSA turned a deaf ear...

Why would you drill an oil hole in the most critical portion of the bearing where the hydrodynamic wedge is formed. We go out of our way to get bearing clearances right. Use the right grade of oil so that at ambient operating temperatures the oil viscosity is within the range that will allow the wedge to form. Make sure the crank journal is round and straight to insure the wedge will form. Only to drill a hole at the most critical point. Oh, we will put in a bigger pump to compensate for the oil spraying out the flywheel and out the hole in the rod... Great! clap clap

And why? I am told to lubricate the drive side roller bearing. A bearing that will run in a mist of oil, and there is plenty of that in one of these engines. So what was the idea here? To make a 100,000 mile roller bearing for a connecting rod and rod bearing that, at Interstate speeds, is good for a few thousand miles?

Well at least in 1971 they did fit an external oil filter so part of the job was done for you...

I would be amiss if I didn't give BSA credit for a much better combustion chamber than Triumph. If this engine had a classic Triumph hemi-combustion, and the resultant increase chances of detonation, you would have seen a lot more of split rods.
John


Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609488
07/21/15 9:50 am
07/21/15 9:50 am
Joined: Dec 2004
Posts: 9,501
Scotland
kommando Online content
BritBike Forum member
kommando  Online Content
BritBike Forum member

Joined: Dec 2004
Posts: 9,501
Scotland
I was hinting at the workers on the line taking a dim view of the badge on the tank and the primary cover and installing a few added gremlins. These were over and above the inherent design flaws and provided free wink.

The 1969 TR25W factory manual is the best factory one to work off on this bikes especially when used with the Tri-cor engine assembly tip sheet, lots of added fix's and care points over the BSA version.

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: kommando] #609489
07/21/15 10:03 am
07/21/15 10:03 am
Joined: Aug 2014
Posts: 1,688
OZ
Triless Online content
BritBike Forum member
Triless  Online Content
BritBike Forum member

Joined: Aug 2014
Posts: 1,688
OZ
Maybe Edsel Ford wanted a motorcycle that went with the automobile that had his name!

Re: Big End Bush 1968 TR25W Hole or No Hole? [Re: BruceinT.O.] #609490
07/21/15 10:42 am
07/21/15 10:42 am
Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
J
John Healy Online content

BritBike Forum member
John Healy  Online Content

BritBike Forum member
J

Joined: Mar 2005
Posts: 10,207
Boston, Massachusetts
Quote:
Maybe Edsel Ford wanted

Now be nice... I wouldn't have wanted, for all the money and prestige at hand, being Edsel. Edsel wanted nothing more than the rest of us wanted. To enjoy the freedom and friendships one has in the two wheel community.

Lindsay Brooke recently interviewed Edsel at Charlotte Motor Speedway. He fondly remembers the bike, now remembered just as a Trophy. He did wander into a bit about dad, and how he wouldn't have approved of the adventure on two wheels. Mind, he only used it to run around campus, and I suspect for that occasional mile jaunt over to Wellesley College. Babson College was founded to serve, and groom, the sons of the industrial class. Wellesley is an all women campus and they to have groomed many of the women women leaders in the country - Hilliary, for example, is a graduate of Wellesley College.


Page 1 of 3 1 2 3

Moderated by  John Healy


Home | Sponsors | Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons | "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Powered by UBB.threads™ PHP Forum Software 7.6.2
