Forged frame lugs #588770
03/05/15 11:38 pm
03/05/15 11:38 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.

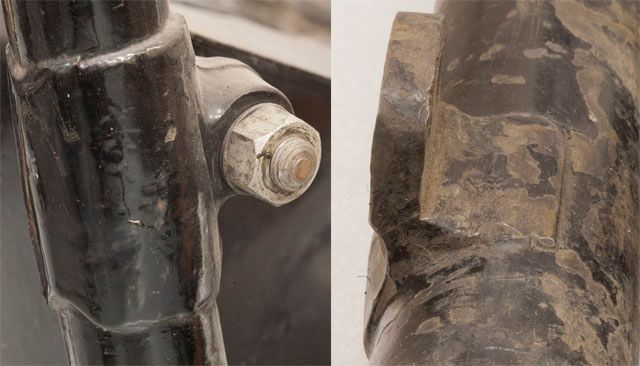

Thanks to Boomer (Boomer, thanks) we've been able to nail down certain identifying features on early Gold Stars. One of the features of interest are the forged engine mounting lugs on the downtubes (replacing welded stubs in the upper location) that appeared sometime after frame number CB32.275 and prior to .2880.

It would be great to narrow this down further, so if any of you have a 1954-56 Gold Star with a frame number within the above range, please post whether all four of its lugs are welded, or if the upper two are forged. Don't post your actual frame number but round it up to the nearest 5 or 10 (e.g. if it's 1906 post 1910).

Support your #1 BSA Forum and our favorite sponsors

Check out BSA on e-bay: BSA Parts in UK, BSA Motorcycles in UK, BSA Parts in North America, BSA Motorcycles in North America



Re: Forged frame lugs [Re: Magnetoman] #588776
03/06/15 2:17 am
03/06/15 2:17 am
Joined: Aug 2009
Posts: 29
SC
J
jimm Offline
BritBike Forum member
jimm  Offline
BritBike Forum member
J
Joined: Aug 2009
Posts: 29
SC
My frame, number 1755, has the upper forged lugs.

Jim

Re: Forged frame lugs [Re: jimm] #588848
03/06/15 11:00 am
03/06/15 11:00 am
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By jimm
My frame, number 1755, has the upper forged lugs.
Thanks very much for this. Ever such post helps narrow the range of possibilities where this change to forged lugs occurred. By the way, the goal of this exercise isn't rivet counting, it's to help separate the Gold from the Pyrite when considering a bike for purchase.

Re: Forged frame lugs [Re: Magnetoman] #588900
03/06/15 3:28 pm
03/06/15 3:28 pm
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
S
Seamus Offline
BritBike Forum member
Seamus  Offline
BritBike Forum member
S
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
Am I mistaken, as I thought the forged lugs were available as the originals broke under stress and could have been used as repairs on earlier bikes. They were then fitted to production bikes a bit later. Believe late 1954 if I recall a conversation with Ian Jackson correctly.

Re: Forged frame lugs [Re: Seamus] #588979
03/06/15 11:01 pm
03/06/15 11:01 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By Seamus
Am I mistaken, as I thought the forged lugs were available as the originals broke under stress and could have been used as repairs on earlier bikes.
Yes, I suppose it's possible some people have frames that originally had welded stubs that long ago were replaced with forged lugs. But if enough people reply to my question we should be able to determine approximately when this improvement entered production at the factory.

Re: Forged frame lugs [Re: Magnetoman] #588990
03/07/15 12:35 am
03/07/15 12:35 am
Joined: Apr 2006
Posts: 261
Kansas City
RGSDave Offline
BritBike Forum member
RGSDave  Offline
BritBike Forum member
Joined: Apr 2006
Posts: 261
Kansas City
So, how did they repair the frames with the forged lugs? Did they actually cut them apart and put forged lugs on them, or did they just replace the whole front frame section?

Re: Forged frame lugs [Re: Magnetoman] #589008
03/07/15 4:06 am
03/07/15 4:06 am
Joined: Feb 2012
Posts: 1,226
Middle East,
Kerry W Offline
BritBike Forum member
Kerry W  Offline
BritBike Forum member
Joined: Feb 2012
Posts: 1,226
Middle East,
Ian Jackson, Machine registrar in the UKGSOC, did a piece in a similar vein a little while ago. I'll see if I can find his data.


No generalisation is wholly true, not even this one.
Oliver Wendell Holmes
Re: Forged frame lugs [Re: Kerry W] #589072
03/07/15 1:02 pm
03/07/15 1:02 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By Kerry W
Ian Jackson,...
Thanks for mentioning this. I just sent now sent Ian an email and will report what he tells me.

Re: Forged frame lugs [Re: Magnetoman] #589113
03/07/15 5:26 pm
03/07/15 5:26 pm
Joined: Jul 2006
Posts: 880
newcastle australia
trevinoz Offline
BritBike Forum member
trevinoz  Offline
BritBike Forum member
Joined: Jul 2006
Posts: 880
newcastle australia
As an aside, the CA7 frame had the forged lugs fitted some time during 1955 production.

Re: Forged frame lugs [Re: trevinoz] #589162
03/08/15 12:40 am
03/08/15 12:40 am
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By trevinoz
As an aside, the CA7 frame had the forged lugs fitted some time during 1955 production.
It's a very interesting 'aside'. I wonder if all frames got the lugs at the same time.

Re: Forged frame lugs [Re: Magnetoman] #589173
03/08/15 5:50 am
03/08/15 5:50 am
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
S
Seamus Offline
BritBike Forum member
Seamus  Offline
BritBike Forum member
S
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
Did the B31 frames also get the lugs?

Re: Forged frame lugs [Re: Magnetoman] #589222
03/08/15 12:28 pm
03/08/15 12:28 pm
Joined: Feb 2012
Posts: 1,226
Middle East,
Kerry W Offline
BritBike Forum member
Kerry W  Offline
BritBike Forum member
Joined: Feb 2012
Posts: 1,226
Middle East,
Good question. None of the ones I have experience of - all pre '56 (pre Ariel hubs) had forged lugs.


No generalisation is wholly true, not even this one.
Oliver Wendell Holmes
Re: Forged frame lugs [Re: Kerry W] #589226
03/08/15 12:48 pm
03/08/15 12:48 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Unless I've forgotten something -- in which case please fill in the missing information -- following are the variations I can think of in the evolution of the Gold Star's swinging arm frame:

Initial (1953) swinging arm frame
1954 frame with welded engine mounts
c1955-56 with forged upper mounts
Catalina without rear passenger loops
Catalina with right loop for mounting silencer
c1960 with full height headstock brace
c1962-63 with forged upper and lower mounts

In addition to identifying anything missing from this list, it would be interesting to correlate some of these variations with what was going on with similar frames of other models, i.e. B31/33, B32/34, and A7/10.

Re: Forged frame lugs [Re: Magnetoman] #589241
03/08/15 1:45 pm
03/08/15 1:45 pm
Joined: Dec 2004
Posts: 9,228
Scotland
kommando Online content
BritBike Forum member
kommando  Online Content
BritBike Forum member
Joined: Dec 2004
Posts: 9,228
Scotland
Are these lugs actually forgings, aren't they more likely to be malleable cast iron due to the low volumes and its use for footpegs etc ?

Vincent's use malleable cast iron

http://www.voc.uk.com/net/docs/1.3/1.3-633-23.pdf

Last edited by kommando; 03/08/15 1:47 pm.
Re: Forged frame lugs [Re: Magnetoman] #589246
03/08/15 2:02 pm
03/08/15 2:02 pm
Joined: Feb 2012
Posts: 1,226
Middle East,
Kerry W Offline
BritBike Forum member
Kerry W  Offline
BritBike Forum member
Joined: Feb 2012
Posts: 1,226
Middle East,
BSA did have what was considered to be the best forging operation in the industry at the time.


No generalisation is wholly true, not even this one.
Oliver Wendell Holmes
Re: Forged frame lugs [Re: kommando] #589251
03/08/15 2:31 pm
03/08/15 2:31 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By kommando
Are these lugs actually forgings,
That's a good question, and I admit I have just been using "forged" because that's what most people write, without having actually determined whether this is the case. Here's a composite of the, um, "forged" upper engine mounting lug on a late DBD and the "forged" mudguard bracket on the fork leg of an unknown Gold Star (or B34?):



At least in the case of the mudguard bracket it would have been cheaper to stamp/forge it into the rounded shape than to machine it. As Kerry wrote, BSA is well documented to have had the forging technology in house.

I have access to a butchered A7 frame from which I could cut one of the mounting lugs, section it, etch it, and examine in my metallurgical microscope. The grain structure would reveal whether it had been forged or cast. Although I'm interested in this, and it's now on my to-do list, realistically it isn't going to make it to the top of that list anytime soon.

Re: Forged frame lugs [Re: Magnetoman] #589271
03/08/15 4:12 pm
03/08/15 4:12 pm
Joined: Mar 2007
Posts: 1,153
Winona, MN
Swan Offline

BritBike Forum member
Swan  Offline

BritBike Forum member
Joined: Mar 2007
Posts: 1,153
Winona, MN
Originally Posted By Magnetoman
Unless I've forgotten something -- in which case please fill in the missing information -- following are the variations I can think of in the evolution of the Gold Star's swinging arm frame:

c1962-63 with forged upper and lower mounts


FWIW here is my 1962 BSA Gold Star frame CB32 1102X after media blasting:




1966 Triton
1962 BSA DBD34 Gold Star
1966 Triumph Bonneville
Re: Forged frame lugs [Re: Swan] #589301
03/08/15 8:37 pm
03/08/15 8:37 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By Swan
FWIW here is my 1962 BSA Gold Star frame CB32 1102X after media blasting:
It's worth a lot. This narrows things down considerably. Along with my own frame, it means the "forged" lower mounts were added sometime in the next 700 produced after yours, i.e. after 1102x and before 1172x.

Re: Forged frame lugs [Re: Magnetoman] #589474
03/09/15 6:30 pm
03/09/15 6:30 pm
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
S
Seamus Offline
BritBike Forum member
Seamus  Offline
BritBike Forum member
S
Joined: May 2008
Posts: 224
Luton Bedfordshire UK
More mud in the water,
Looking closely at the top lug on my frame reveals a stamp of 42-4320 BSA. Can take a photo if required

Re: Forged frame lugs [Re: Seamus] #589504
03/09/15 10:02 pm
03/09/15 10:02 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By Seamus
Looking closely at the top lug on my frame reveals a stamp of 42-4320 BSA. Can take a photo if required
Can you clarify where this stamp is (or is it a raised forging number)? I just spent a few minutes crawling around my '63 DBD and can't see a number on the top of any of the engine mounting lugs. What year is yours?

Re: Forged frame lugs [Re: Magnetoman] #589506
03/09/15 10:19 pm
03/09/15 10:19 pm
Joined: Apr 2006
Posts: 261
Kansas City
RGSDave Offline
BritBike Forum member
RGSDave  Offline
BritBike Forum member
Joined: Apr 2006
Posts: 261
Kansas City
I have the same number on two 63 RGS frames,cast raised numbers on the inside of the lugs

Last edited by RGSDave; 03/09/15 10:20 pm.
Re: Forged frame lugs [Re: RGSDave] #589510
03/09/15 10:44 pm
03/09/15 10:44 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By RGSDave
cast raised numbers on the inside of the lugs
Ah, inside the lugs. I didn't carefully look there. But, I did check BSA's master price guide for that period and no such part no. (differing by 1 from the casting number) was available as a spare part so treat yours carefully because you won't be able to buy a replacement.

Re: Forged frame lugs [Re: Magnetoman] #589516
03/09/15 11:08 pm
03/09/15 11:08 pm
Joined: Feb 2012
Posts: 1,226
Middle East,
Kerry W Offline
BritBike Forum member
Kerry W  Offline
BritBike Forum member
Joined: Feb 2012
Posts: 1,226
Middle East,
Then there's the question of when BSA went to 4 forged lugs..


No generalisation is wholly true, not even this one.
Oliver Wendell Holmes
Re: Forged frame lugs [Re: Kerry W] #589521
03/09/15 11:30 pm
03/09/15 11:30 pm
Joined: Nov 2011
Posts: 4,286
U.S.
Magnetoman Offline OP

BritBike Forum member
Magnetoman  Offline OP

BritBike Forum member
Joined: Nov 2011
Posts: 4,286
U.S.
Originally Posted By Kerry W
Then there's the question of when BSA went to 4 forged lugs..
That was addressed a few posts earlier. At least, it narrowed it down to the number produced between Swan's and mine. It would be nice to narrow it down further, though.

Re: Forged frame lugs [Re: Magnetoman] #589542
03/10/15 6:58 am
03/10/15 6:58 am
Joined: Sep 2013
Posts: 745
Westminster, Colorado
stubbicatt R.I.P. Offline
In Remembrance
stubbicatt R.I.P.  Offline
In Remembrance
Joined: Sep 2013
Posts: 745
Westminster, Colorado
Warning... thread veer...

Does the fitment of lower forgings in the last years suggest that the welded on tube lower lugs are prone to failure? Now I'm afraid to start the old girl...

Last edited by stubbicatt; 03/10/15 6:58 am.

Hate is a poison which one consumes hoping for another to die.
Page 1 of 2 1 2

Moderated by  Rich B


Home | Sponsors | Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons | "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Powered by UBB.threads™ PHP Forum Software 7.6.1.1
(Release build 20180111)
Page Time: 0.070s Queries: 16 (0.007s) Memory: 1.2002 MB (Peak: 1.5436 MB) Zlib disabled. Server Time: 2018-04-23 09:16:12 UTC
