#524325 - 01/23/14 12:02 pm Veglia T140 1978+ speedo drive
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
I read somewhere that the veglia speedo on the later 1978+ T140 Triumphs lies on the left drive side of the bike (and not on the right as usual on a disk/drum setup).

I've been trying to find some photos of this, but there are scant examples on google images.

I was wondering what precautions were made to stop the speedo cable hitting the drive chain, in particular the route of the cable given the speedo is on the drive side?

Last edited by Acebars; 01/23/14 12:02 pm.
Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
#524328 - 01/23/14 12:25 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Jun 2002
Posts: 9,282
Stuart Offline
BritBike Forum member
Stuart  Offline
BritBike Forum member

Joined: Jun 2002
Posts: 9,282
Scotland
Hi,

Originally Posted By: Acebars
the veglia speedo on the later 1978+ T140 Triumphs lies on the left drive side of the bike

It is on all Triumphs with a rear disc brake, from the T160 (Smiths speedo/drive) onwards.

Originally Posted By: Acebars
the route of the cable given the speedo is on the drive side?

On my T160's (one of which I've owned from brand-new), the cable is tied to the swinging arm tube about where it bends towards the pivot then it's tied to the drive-side frame tube where that curves under the engine, so the cable is between the two chain runs and the curve between the ties allows for swinging arm movement.

The cable curves around the front of the engine - I don't try to make it follow the lower frame tube curve because that's too tight for the cable - tied to the the front downtube (one on a oif) to stop it touching the exhausts, 'round the headstock and up to the speedo.

Hth.

Regards,

#524334 - 01/23/14 12:46 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
Correct me if I'm wrong I'm pretty sure I've seen a rear spoked T140 wheel and the speedo was on the right side.

It's on the later cast ally rims I believe the speed was on the left/drive side.

Could I get a photo of your drive side speedo in particular of the speedo cable route via the swing arm? Would be much appreciated.

#524344 - 01/23/14 2:14 pm Re: Veglia T140 1978+ speedo drive [Re: Stuart]
Joined: Mar 2006
Posts: 3,465
L.A.B. Online content
BritBike Forum member
L.A.B.  Online Content
BritBike Forum member

Joined: Mar 2006
Posts: 3,465
Norfolk, UK
Originally Posted By: Stuart
Originally Posted By: Acebars
the veglia speedo on the later 1978+ T140 Triumphs lies on the left drive side of the bike

It is on all Triumphs with a rear disc brake, from the T160 (Smiths speedo/drive) onwards.


No, it wasn't. Up to the '79 season, the T140/TR7 drive gearbox was on the right side.



The change of location to the left (drive) side did not take place until the Veglia drive gearboxes were introduced, this occurred during the '79 model season.
The change to the speedo drive gearbox also required a different rear hub assembly.

(Veglia instruments were, however, fitted to some batches of '78 season machines).




#524481 - 01/24/14 11:14 am Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Jul 2012
Posts: 1,468
AngloBike Online content
BritBike Forum member
AngloBike  Online Content
BritBike Forum member

Joined: Jul 2012
Posts: 1,468
UK Berks
My PA serial bike (nov of the 79 build year)
has Veglia dials but a RHS drive, I have never looked to see who made it

I've owned it since 84

Last edited by AngloBike; 01/24/14 11:15 am.
#524510 - 01/24/14 1:45 pm Re: Veglia T140 1978+ speedo drive [Re: AngloBike]
Joined: Mar 2006
Posts: 3,465
L.A.B. Online content
BritBike Forum member
L.A.B.  Online Content
BritBike Forum member

Joined: Mar 2006
Posts: 3,465
Norfolk, UK
Originally Posted By: AngloBike
My PA serial bike (nov of the 79 build year)


But which November?
According to the Triumph date codes/numbers, there would have been '79 season "PA" prefix T140s built in Nov. '78 and a second lot of PA prefix bikes built in Nov. '79 as the "1979 build season" lasted nearly a year and a half, HA11001-PA24608 (should have ended at XA24790 ("XB24609 to 24790 XB date code used in error, should be XA").

http://www.britishonly.com/tech/joust/techtiptriumphmf.htm


Originally Posted By: AngloBike
has Veglia dials but a RHS drive,


Presumably, your T140 is one of the early (Nov. '78) built PA models?

Originally Posted By: AngloBike
Veglia dials but a RHS drive, I have never looked to see who made it

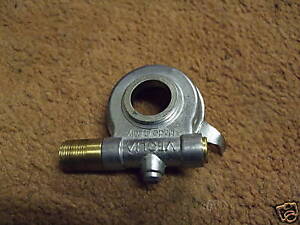

Veglia:

Smiths (genuine):





Last edited by L.A.B.; 01/24/14 2:04 pm.
#524614 - 01/25/14 5:41 am Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Jun 2013
Posts: 414
Adrian1 Offline
BritBike Forum member
Adrian1  Offline
BritBike Forum member

Joined: Jun 2013
Posts: 414
Australia
2 shots from hand gun! laughing

#524672 - 01/25/14 2:04 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Jul 2012
Posts: 1,468
AngloBike Online content
BritBike Forum member
AngloBike  Online Content
BritBike Forum member

Joined: Jul 2012
Posts: 1,468
UK Berks
Registered May 79

smiths drive

#524701 - 01/25/14 5:28 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
Erm so anyone have a photo of the LHS/Drive side veglia and it's cable routing? Would be appreciated.

I'm pretty sure the difference is cast alloy rim - LHS drive side veglia speedo drive, spoked rim RHS disc brake side speedo drive.

#524789 - 01/26/14 1:39 am Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Jun 2002
Posts: 9,282
Stuart Offline
BritBike Forum member
Stuart  Offline
BritBike Forum member

Joined: Jun 2002
Posts: 9,282
Scotland
Hi,

Originally Posted By: Acebars
anyone have a photo of the LHS/Drive side veglia and it's cable routing? Would be appreciated.

Sorry, I wasn't ignoring your earlier request, just need some time to get into the garage and contort myself between the bikes to get the photos. eek

Regards,

#524820 - 01/26/14 7:00 am Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
Stuart I'd really appreciate this! Many thanks

#524883 - 01/26/14 1:17 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Mar 2006
Posts: 3,465
L.A.B. Online content
BritBike Forum member
L.A.B.  Online Content
BritBike Forum member

Joined: Mar 2006
Posts: 3,465
Norfolk, UK
Originally Posted By: Acebars
I'm pretty sure the difference is cast alloy rim - LHS drive side veglia speedo drive, spoked rim RHS disc brake side speedo drive.


No, definitely two different spoked rear wheel hub assemblies used on the T140/TR7, one to suit the Smiths RH speedo drive gearbox (early) and another for the Veglia drive (late).



__________________________________________________________________________________



Last edited by L.A.B.; 01/26/14 4:31 pm.
#525088 - 01/27/14 7:44 pm Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Aug 2013
Posts: 495
downhere Offline
BritBike Forum member
downhere  Offline
BritBike Forum member

Joined: Aug 2013
Posts: 495
Australia
Are the veglia type drives still available? I want to adapt one to a girder front wheel off an M20 BSA which runs a nearside drive. Very hard to come by as they turn in the opposite direction from standard ones.

#525158 - 01/28/14 8:02 am Re: Veglia T140 1978+ speedo drive [Re: downhere]
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
Yep plenty of original, replica or reproduction types on eBay.

#525763 - 02/01/14 9:12 am Re: Veglia T140 1978+ speedo drive [Re: Acebars]
Joined: Sep 2013
Posts: 81
Acebars Offline
BritBike Forum member
Acebars  Offline
BritBike Forum member

Joined: Sep 2013
Posts: 81
London, UK
Stuart my saviour! Would the speedo cable/swing arm setup be any closer to being photographed! smile
