Oil Pressure gauge fitting on '68 engine #484348
04/04/13 1:31 am
04/04/13 1:31 am
Joined: Apr 2013
Posts: 3
North East PA
N
Nate Carey Offline OP
BritBike Forum member
Nate Carey  Offline OP
BritBike Forum member
N

Joined: Apr 2013
Posts: 3
North East PA
Hello everyone. I've been lurking for a few weeks finding out everything I can about my "new" bike. Its a '72 lightning with a '68 firebird scrambler engine. Now when I got the bike I assumed that since there was a warning light then it must use the pressure switch but now I realize I was dead wrong. Bike didnt run and I thought the bulb was burnt out. So my question is, Is there anywhere on this engine I can fit a pressure gauge to keep an eye on things? I havent had any luck with searches. Thanks for any help

Last edited by Nate Carey; 04/04/13 1:32 am.

'68 OIF Firebird
Support your #1 BSA Forum and our favorite sponsors

Check out BSA on e-bay: BSA Parts in UK, BSA Motorcycles in UK, BSA Parts in North America, BSA Motorcycles in North America


Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484356
04/04/13 2:08 am
04/04/13 2:08 am
Joined: Jan 2004
Posts: 3,849
ca, us
D
DMadigan Offline
BritBike Forum member
DMadigan  Offline
BritBike Forum member
D

Joined: Jan 2004
Posts: 3,849
ca, us
The boss for the pressure switch was a later addition. Somewhere there was a big discussion about it. My way around it and to fix the leak path in the OPRV was to replace the OPRV with a different design that incorporated the switch boss.
[Linked Image]

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484357
04/04/13 2:09 am
04/04/13 2:09 am
Joined: Jan 2012
Posts: 255
Oahu Hawaii USA
Roger Gulledge Offline
BritBike Forum member
Roger Gulledge  Offline
BritBike Forum member

Joined: Jan 2012
Posts: 255
Oahu Hawaii USA
Welcome Nate
I use google to search this site and works well, just enter what you are looking for with britbike at the end.

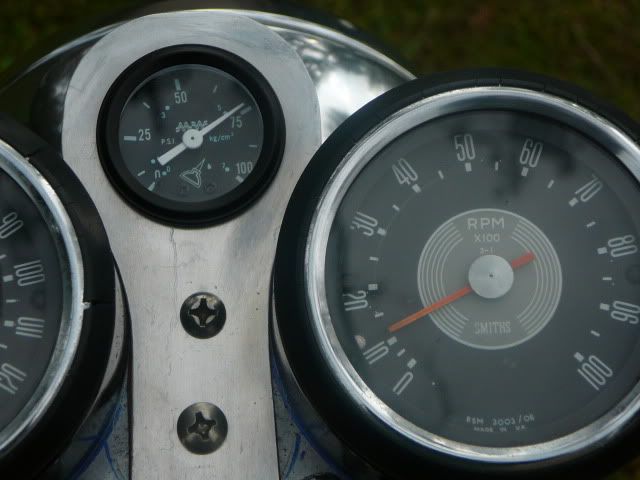

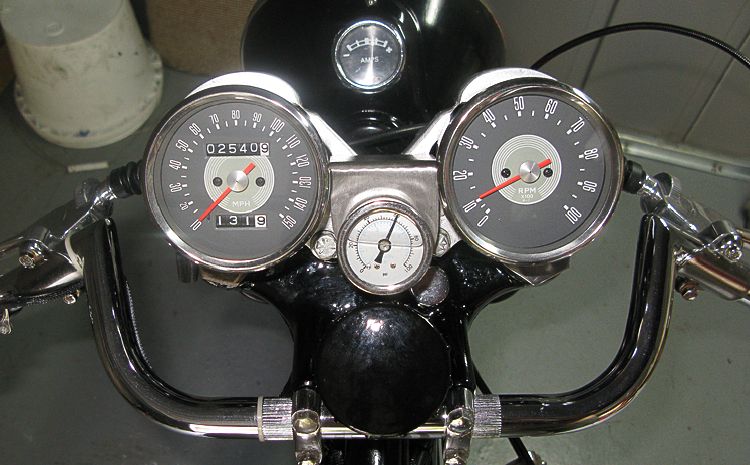

Sorry I can't help with your question. I have a 70 A65 that I installed an oil pressure gauge on. I could be wrong but I think they started in 69 with a oil hole and blanking plug in the front of the case.

[Linked Image]

[Linked Image]


Roger G
70 Thunderbolt
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484385
04/04/13 12:10 pm
04/04/13 12:10 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Beautiful oil hose. My 70 A50r wants one -except she wants one with jewels and perhaps in gold. Women. But I would like to source the "plain" one. Do you remember where you got it and $? Thanks , Leon


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484420
04/04/13 6:01 pm
04/04/13 6:01 pm
Joined: Apr 2013
Posts: 3
North East PA
N
Nate Carey Offline OP
BritBike Forum member
Nate Carey  Offline OP
BritBike Forum member
N

Joined: Apr 2013
Posts: 3
North East PA
Thanks for the replies guys.
DMadigan - Very clean and simple way to do it. Looks great. I may end up going that route.

Roger - In your pic the black line in the center of your engine, is that the pressure gauge feed line or is the braided line your feed? I have the blanking cover in the center cases.

Last edited by Nate Carey; 04/04/13 6:03 pm.

'68 OIF Firebird
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484427
04/04/13 7:01 pm
04/04/13 7:01 pm
Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M

Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
I approached it similarly to DM. I plugged the return to the sump with an 8-32 Allen set screw which I tapped and removed the existing OPRV. I then installed a tee by taking the cover from an early model OPRV and tapping it for the 1/8th pipe thread. One end of the Tee has in in-line OPRV which I added and returns directly to the tank. The other side feeds the gauge. I will admit that I have not sized the new OPRV correctly. It is a ball spring type that is not big enough for cold oil. Once the engine reaches temp it works fine, however, it is prone to hysteresis (doesn't completely colose off until the the pressure is very low). This was the problem with early OPRV's. I have located a "low hysteresis" valve that is adjustable and will likely solve the problem, but have not got around to finishing my project. I did solve my main objective and have good oil pressure throughout the range, but the system needs some fine tuning. Pic shows cold idle pressure. Obvious OPRV is not bypassing enough oil. Once hot it is fine, idling at 17-20 psi.
[Linked Image]

Mr Mike

Last edited by Mr Mike; 04/04/13 7:03 pm.
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484430
04/04/13 7:30 pm
04/04/13 7:30 pm
Joined: Jan 2012
Posts: 255
Oahu Hawaii USA
Roger Gulledge Offline
BritBike Forum member
Roger Gulledge  Offline
BritBike Forum member

Joined: Jan 2012
Posts: 255
Oahu Hawaii USA
Nate...I should have said oil hole and blanking plug in front of the OPRV.The black line in the center is for a crankcase breather system, it is installed in the hole that is used to set the piston position for ignition timing in the fully-advanced position.

Leon...I had the hose and fittings made up from McMaster-Carr, they will make up what ever you want. McMaster-Carr and Gauge Not cheap but well worth the peace of mind that it will stay together and not give me problems.

Last edited by Roger Gulledge; 04/04/13 7:55 pm.

Roger G
70 Thunderbolt
Re: Oil Pressure gauge fitting on '68 engine [Re: LeonGustus] #484437
04/04/13 8:26 pm
04/04/13 8:26 pm
Joined: Oct 2008
Posts: 5,198
Gnashville
DavidP Offline

BritBike Forum member
DavidP  Offline

BritBike Forum member

Joined: Oct 2008
Posts: 5,198
Gnashville
Originally Posted by LeonGustus
Beautiful oil hose. My 70 A50r wants one -except she wants one with jewels and perhaps in gold. Women. But I would like to source the "plain" one. Do you remember where you got it and $? Thanks , Leon

Try this:
http://www.summitracing.com/parts/sum-g2960/overview/

No jewels, or gold, but it beats that ugly plastic tubing.


Stepping on others doesn't make you stand tall.

71 A65L "Zelda"
92 BMW K100rs "Gustav"
72 T120V cafe project "Mr. Jim"
72 T150V yet to be named
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484478
04/05/13 1:29 am
04/05/13 1:29 am
Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M

Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
Hey, I gotta McMaster Carr hose all made up that was a tad short for my changed gauge location. I believe it is 1/8 Male npt on one end and female on the other. I'll donate is for shipping costs but I'll need your measurement to check.

Mr Mike

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484528
04/05/13 12:50 pm
04/05/13 12:50 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Her "ugly plastic tubing" is about 35 inches long but would look better at 33. It is male and female but can't vouch for the thread size - went right on the O.P. gauge and into the O.P. switch hole. She would love this new addition to her wardrobe if the shoe fits.


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484636
04/06/13 1:23 am
04/06/13 1:23 am
Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M

Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
I'll go looking for it in the AM and let you know exactly what I've got.

Mr Mike

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484662
04/06/13 11:24 am
04/06/13 11:24 am
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
I am advised of a 36 inch hose available commonly and I'll try to do a mock-up to see how that would work. A little re-routing could "hide" the extra if needed.


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484664
04/06/13 11:39 am
04/06/13 11:39 am
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Mr. Mike 36 inch route looks good too. Crossing my fingers. Leon


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484721
04/06/13 6:45 pm
04/06/13 6:45 pm
Joined: Apr 2005
Posts: 1,686
Mississauga, Ontario.
A
Adam M. Offline
BritBike Forum member
Adam M.  Offline
BritBike Forum member
A

Joined: Apr 2005
Posts: 1,686
Mississauga, Ontario.
Roger, sorry for highjacking the thread - does your breathing system works together with a stock setup, or you removed / blocked it ? And how does it work comparing to stock ?

To be "in the money" with the thread - what oil gauges do you guys used and how do they last ?

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484740
04/06/13 11:31 pm
04/06/13 11:31 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
I have one like Rogers -liquid filled (0to60psi-I never hope for more)that I got at Graingers for maybe 20 bucks. It got a little yucky looking after about 8 years but I still believe its' reading. Ms. Doolittle will ask me to replace it along with her new fancy hose. I haven't told her yet - she should be glad she's getting an oil and filter change!


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484749
04/07/13 12:44 am
04/07/13 12:44 am
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Does Ms. Doolittle need better breathing? How does one know?


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484873
04/07/13 10:10 pm
04/07/13 10:10 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
After review, her oil line is female-female with an added fitting to male. Details.


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: LeonGustus] #484878
04/07/13 10:43 pm
04/07/13 10:43 pm
Joined: Oct 2008
Posts: 5,198
Gnashville
DavidP Offline

BritBike Forum member
DavidP  Offline

BritBike Forum member

Joined: Oct 2008
Posts: 5,198
Gnashville
Originally Posted by Adam M.

To be "in the money" with the thread - what oil gauges do you guys used and how do they last ?

I had a Sunpro auto gauge for a while. That lasted a about six months. Replaced that with one from Accurate Instruments. Again, that lasted about six months.
I now have a pretty much generic liquid-filled gauge, still working after over a year. However, I tested the thing using a compressor. It reads about 8psi low, but at least it hasn't self destructed from vibration.....yet.

Originally Posted by LeonGustus
Does Ms. Doolittle need better breathing? How does one know?

How big of a puddle does the stock breather leave on your garage floor? laughing


Stepping on others doesn't make you stand tall.

71 A65L "Zelda"
92 BMW K100rs "Gustav"
72 T120V cafe project "Mr. Jim"
72 T150V yet to be named
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #484934
04/08/13 11:53 am
04/08/13 11:53 am
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Maybe how the gauge is mounted determines its life span? I've not had one fail but I have rubber washers on the bottom where I attach it to a metal tab that's bolted to the instrument plate. The gauge "floats" like sitting at the end of the diving board. I had a cheapy for years and only replaced it cause it looked cheap. Had a metal tab break though. Look at Rogers - I suspect there's a rubber spacer/washer under it.


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485034
04/09/13 12:34 am
04/09/13 12:34 am
Joined: Apr 2013
Posts: 3
North East PA
N
Nate Carey Offline OP
BritBike Forum member
Nate Carey  Offline OP
BritBike Forum member
N

Joined: Apr 2013
Posts: 3
North East PA
So I was looking over the bike and had a crazy idea about tapping into the feed line to the head. I'm thinking about using a T fitting but I'm not sure what the thread is going into the head. Tried some npt and didn't quite fit. Any ideas on thread? Already tried the service manual


'68 OIF Firebird
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485049
04/09/13 2:04 am
04/09/13 2:04 am
Joined: Jan 2004
Posts: 3,849
ca, us
D
DMadigan Offline
BritBike Forum member
DMadigan  Offline
BritBike Forum member
D

Joined: Jan 2004
Posts: 3,849
ca, us
You will not get any significant reading from the head feed. That is on the return side of the pump and the pressure is only regulated by the oil line to the tank and the chain drip feed screw inside the tank.
The only places you have crank feed pressure is the OPRV or one of the blanking screws for the cross drillings. Unless you add another hole somewhere.

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485082
04/09/13 12:29 pm
04/09/13 12:29 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Mr. Mike, should I assume your McMaster hose doesn't suit Ms. Doolittle? Her oil and filter change netted her a blue Mann oil filter that nearly matches her own blue. She's good.


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485677
04/14/13 12:50 am
04/14/13 12:50 am
Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M

Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
Leon,
I found the hose. It is 36" and has 1/8th male pipe thread on both ends so the gauge end will likely need a female coupling.

Mr Mike

Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485707
04/14/13 12:16 pm
04/14/13 12:16 pm
Joined: Jan 2012
Posts: 338
florida
L
LeonGustus Offline
BritBike Forum member
LeonGustus  Offline
BritBike Forum member
L

Joined: Jan 2012
Posts: 338
florida
Perfect - I'm your buyer. Got the coupling too. Can I P.M. my address?


October of 69-A50R
Re: Oil Pressure gauge fitting on '68 engine [Re: Nate Carey] #485715
04/14/13 2:06 pm
04/14/13 2:06 pm
Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M

Joined: Aug 2001
Posts: 3,884
Cape Carteret, NC
Leon,
Yes, mrmike@embarqmail.com.
Mr Mike

Page 1 of 2 1 2

Moderated by  Allan Gill, Jon W. Whitley


Home | Sponsors | Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons | "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Powered by UBB.threads™ PHP Forum Software 7.6.2
