fork lower assembly A65 shuttle valve type #41407
08/08/08 4:00 pm
08/08/08 4:00 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
at long last i have some sliders for my project and will have the rolling chassis done in a couple of weeks.......i am using triumph type shuttle valve forks with A65 tubes...the sliders i got came with a piece in the bottom that looks like a slender cone...the bolt that holds it goes through the bottom of the slider,,,how is this piece reassembled??? i see it has a slot and the drain plug on the side has a protuberance.....


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Support your #1 BSA Forum and our favorite sponsors

Check out BSA on e-bay: BSA Parts in UK, BSA Motorcycles in UK, BSA Parts in North America, BSA Motorcycles in North America


Re: fork lower assembly A65 shuttle valve type #41408
08/09/08 5:47 am
08/09/08 5:47 am
Joined: Jan 2004
Posts: 3,823
ca, us
D
DMadigan Offline
BritBike Forum member
DMadigan  Offline
BritBike Forum member
D

Joined: Jan 2004
Posts: 3,823
ca, us
Does the cone piece not have a hex on the bottom? You should be able to use a deep well socket to tighten it. The cone is to cut off the oil flow through the shuttle as the fork approaches bottom.

Re: fork lower assembly A65 shuttle valve type #41409
08/09/08 12:48 pm
08/09/08 12:48 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
no hex....it's smooth but has a slot cut in the side of the base...i'm thinking the protuberance on the drain plug engages the slot but how?


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41410
08/09/08 1:03 pm
08/09/08 1:03 pm
Joined: Aug 2006
Posts: 476
Dallas Texas
RPM Offline
BritBike Forum member
RPM  Offline
BritBike Forum member

Joined: Aug 2006
Posts: 476
Dallas Texas
What you have is the early type cone piece. It is held by the drain plug. The later type that you need have a hex and use a different bolt at the bottom. You also will need new drain bolts as they are shorter.

Re: fork lower assembly A65 shuttle valve type #41411
08/09/08 1:54 pm
08/09/08 1:54 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
will the type i have not work with the shuttle valve??


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41412
08/09/08 2:07 pm
08/09/08 2:07 pm
Joined: Aug 2006
Posts: 476
Dallas Texas
RPM Offline
BritBike Forum member
RPM  Offline
BritBike Forum member

Joined: Aug 2006
Posts: 476
Dallas Texas
No, you need 2each of part 97-2090, 97-1062,97-2126,97-3893,97-3894. Nothing else will work.

Re: fork lower assembly A65 shuttle valve type #41413
08/09/08 2:31 pm
08/09/08 2:31 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
thanks...


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41414
08/09/08 9:32 pm
08/09/08 9:32 pm
Joined: Sep 2002
Posts: 7,813
Seattle
Alex Offline

BritBike Forum member
Alex  Offline

BritBike Forum member

Joined: Sep 2002
Posts: 7,813
Seattle
Yup, problem is, the cone for the early non-shuttle valve forks is too fat and won't fit inside the hole in the shuttle valve. I suppose you could turn them down if you had access to a lathe, but in the end, I would just get the proper bits.


A smattering:
'53 Gold Flash
'67 Royal Star
'71 Rickman Metisse
'40 Silver Star
'37 Rudge Special
sixtyseventy Lightboltrocket road racer...and many more.
Re: fork lower assembly A65 shuttle valve type #41415
08/09/08 9:54 pm
08/09/08 9:54 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
thanks again fellers..i made up a list for all the new pieces and am going to order them this week,,then I will have totally new forks inside, new stanchions and powder coated sliders ......another hurdle cleared.....


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41416
08/09/08 11:26 pm
08/09/08 11:26 pm
Joined: Sep 2001
Posts: 2,798
Comox BC Canada
G
Gordo in Comox Offline
BritBike Forum member
Gordo in Comox  Offline
BritBike Forum member
G

Joined: Sep 2001
Posts: 2,798
Comox BC Canada
raf; It sounds like you have the bottem bits for the BSA rod damper system.

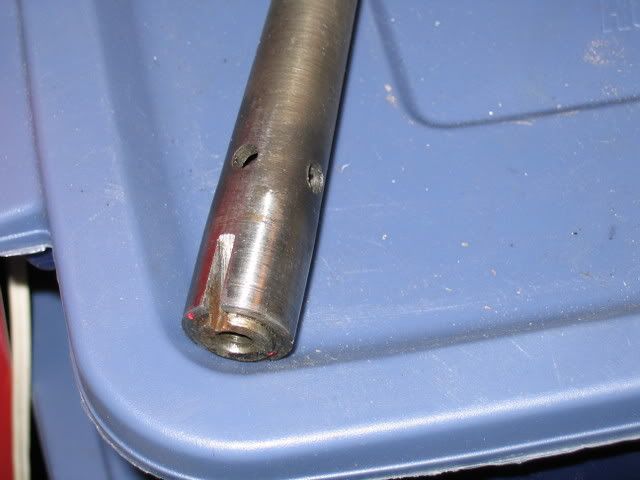

The tube would look like this one if it is BSA.



Without frequent roadside repairs there is no fun in riding!
Re: fork lower assembly A65 shuttle valve type #41417
08/10/08 12:55 am
08/10/08 12:55 am
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
no holes in the cones..they are solid


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41418
08/10/08 2:59 pm
08/10/08 2:59 pm
Joined: Sep 2004
Posts: 269
E
EWebster Offline
BritBike Forum member
EWebster  Offline
BritBike Forum member
E

Joined: Sep 2004
Posts: 269
Check the length of the backing plate peg before you start ordering parts.

Re: fork lower assembly A65 shuttle valve type #41419
08/10/08 3:02 pm
08/10/08 3:02 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
hi....i've already test fitted backing plate peg/axle and everything fits...just got to get correct 'innards'


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41420
08/11/08 7:57 pm
08/11/08 7:57 pm
Joined: Oct 2007
Posts: 1,540
Auckland NZ
Ignoramus Online content
BritBike Forum member
Ignoramus  Online Content
BritBike Forum member

Joined: Oct 2007
Posts: 1,540
Auckland NZ
Raf...RPM is right, the ones you have are for the 68 damper rod forks.

One thing ive wondered about them is how exactly does the oil not leak out through the allen head bolt that hold the cone? Does it just rely for sealing on the assembly parts being a tight steel to steel fit since there is no oil seal shown in parts diagram?

http://www.britbike.com/ubb/noncgi/ultimatebb.php?/ubb/get_topic/f/10/t/007754.html#000000

this thread has parts book pics of 68 and latter shuttle valve forks


"There's the way it ought to be and there's the way it is" (Sgt Barnes)
Re: fork lower assembly A65 shuttle valve type #41421
08/11/08 9:27 pm
08/11/08 9:27 pm
Joined: Sep 2002
Posts: 7,813
Seattle
Alex Offline

BritBike Forum member
Alex  Offline

BritBike Forum member

Joined: Sep 2002
Posts: 7,813
Seattle
Ig, I think Raf has some pre-shuttle valve triumph legs. They used a much fatter restrictor pin (cone), but are otherwise pretty much the same as the shuttle valve forks.


A smattering:
'53 Gold Flash
'67 Royal Star
'71 Rickman Metisse
'40 Silver Star
'37 Rudge Special
sixtyseventy Lightboltrocket road racer...and many more.
Re: fork lower assembly A65 shuttle valve type #41422
08/11/08 9:45 pm
08/11/08 9:45 pm
Joined: Oct 2007
Posts: 1,540
Auckland NZ
Ignoramus Online content
BritBike Forum member
Ignoramus  Online Content
BritBike Forum member

Joined: Oct 2007
Posts: 1,540
Auckland NZ
Alex..I missed that bit....so Triumph brought in the shuttle valve forks before BSA?...you live and learn eh.


"There's the way it ought to be and there's the way it is" (Sgt Barnes)
Re: fork lower assembly A65 shuttle valve type #41423
08/11/08 11:36 pm
08/11/08 11:36 pm
Joined: Mar 2006
Posts: 3,746
gastonia nc
R
raf940 Offline OP
BritBike Forum member
raf940  Offline OP
BritBike Forum member
R

Joined: Mar 2006
Posts: 3,746
gastonia nc
you win a ceegar! the lowers came off a 68 bonneville....they are in great shape but i paid dearly for them .......gonna order innards soon....i put the bike up on the centerstand tonite for the first time........


1972 Triumph T120
1968 BSA A65
1968 MGB Roadster
1979 Chevrolet Camaro Berlinetta
1969 Honda Mini Trail
1939 farmall f30 tractor
2004 Honda Shadow Aero
1972 BSA Thunderbolt
1975 yamaha xs650b
1972 Norton commando
Re: fork lower assembly A65 shuttle valve type #41424
08/12/08 1:33 am
08/12/08 1:33 am
Joined: Sep 2004
Posts: 269
E
EWebster Offline
BritBike Forum member
EWebster  Offline
BritBike Forum member
E

Joined: Sep 2004
Posts: 269
If they are truly off a 68 Triumph, the backing plate will have minimal engagement with the peg on the slider. If you use the BSA spacing on the triple clamps that is. You have to put everything together to be sure, especially if you have the short Tri axle.

Re: fork lower assembly A65 shuttle valve type #41425
08/12/08 1:13 pm
08/12/08 1:13 pm
Joined: Sep 2002
Posts: 7,813
Seattle
Alex Offline

BritBike Forum member
Alex  Offline

BritBike Forum member

Joined: Sep 2002
Posts: 7,813
Seattle
Quote:
Originally posted by Ignoramus:
Alex..I missed that bit....so Triumph brought in the shuttle valve forks before BSA?...you live and learn eh.
Triumph had the shuttle valve-type forks before '69, except they didn't have shuttle valves. They act kind of like the pre-damper rod BSA forks with pretty minimal rebound damping.


A smattering:
'53 Gold Flash
'67 Royal Star
'71 Rickman Metisse
'40 Silver Star
'37 Rudge Special
sixtyseventy Lightboltrocket road racer...and many more.
