B33 Crankcase Breather Query #382120
07/02/11 11:02 pm
07/02/11 11:02 pm
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
Guys,

The breather from the timing case of my 1950 B33 has been plumbed to oil the chain. This is resulting in a oily rear tyre after only a short ride of 15km or so, which worries me somewhat...

This is the fitting I am talking about:

[Linked Image]



  • Is it intended to to plumbed as a chain oiler?
  • Any problem with running it up high to a small filter hidden under the seat of elsewhere?
  • Part # 15-82 in the above drawing is described as "Air release valve disc". Is it designed to function as a one way valve of sorts?



Thanks for your opinions!

Support your #1 BSA Forum and our favorite sponsors

Check out BSA on e-bay: BSA Parts in UK, BSA Motorcycles in UK, BSA Parts in North America, BSA Motorcycles in North America


Re: B33 Crankcase Breather Query [Re: B33Ben] #382153
07/03/11 3:49 am
07/03/11 3:49 am
Joined: May 2004
Posts: 3,892
Sydney Australia
B
BSA_WM20 Offline
BritBike Forum member
BSA_WM20  Offline
BritBike Forum member
B

Joined: May 2004
Posts: 3,892
Sydney Australia
The pre-WWII singles with the breather on the primary side is generally plumbed as a chain oiler.
Post WW II singles had the beather on the timing chest and it generally vents to the road.

If you are getting a lot of oil out of it then you have problems.
The flapper valve really only works well up to 3000rpm.
From there on it gets less and less effective till eventually it ends up being totally out of phase with crankcase pressure.
Spring loaded valves as fitted to some brake valves work better than the flappers at higher revs.

Most likely your rubber seals on the cam spindles need replacing and you are getting too much oil in your timing chest and thus too much oil in the breather. the next biggie is your rings are on the way out.


Bike Beesa
Trevor
Re: B33 Crankcase Breather Query [Re: B33Ben] #382157
07/03/11 5:06 am
07/03/11 5:06 am
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
Thanks for the responses guys. The flapper valve is still in the breather fitting, and its shiny seats suggests it is moving about at least some times...

Trevor, the rubbers you speak of, I guess its these, circled in red?
[Linked Image]
They are nice and soft and fit the cups in the timing case nicely. Not tight, but a neat fit.
What stops the quill that feeds the oil gallery in the timing case from leaking where it enters the hole circled in yellow? I can imagine oil spewing from here, taking the easy pathway rather than entering the galleries in the timing cover.. Is there a seal missing?

The quill:
[Linked Image]

Last question: Why does the Draganfly catalog show a rubber seal on only one camshaft when it's obvious 2 are needed? Wrong drawing?

[Linked Image]

MANY THANKS!

Re: B33 Crankcase Breather Query [Re: B33Ben] #382168
07/03/11 8:21 am
07/03/11 8:21 am
Joined: May 2004
Posts: 3,892
Sydney Australia
B
BSA_WM20 Offline
BritBike Forum member
BSA_WM20  Offline
BritBike Forum member
B

Joined: May 2004
Posts: 3,892
Sydney Australia
The rubbers should be a tight fit in the cover not on the nipples.
The parts book only shows one seal but lists 2 in the quantity as they have the same part number.
The quill is a tighter fit in the crank than it looks and there is no seal there.
The other thing I forgot to mention is you pressure relief valve.
It could be stuck open and allowing too much oil to bypass or the scavenge valve could be partially blocked also allowing a build up of oil in the sump.

I do not want to sound like I am spruking for them but the Bunn Breather kits do a really good job on B series engines, probably better than for the unit singles they were originally desgned for.


Bike Beesa
Trevor
Re: B33 Crankcase Breather Query [Re: B33Ben] #382193
07/03/11 1:29 pm
07/03/11 1:29 pm
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
Thanks for your thoughts Trevor.
I did some measurements around the quill and it is a neat fit as you say. I will look into the oil pressure relief also.

I did stumble across the Bunn valve during my reading, but I didn't see anything about how to purchase one??


Re: B33 Crankcase Breather Query [Re: B33Ben] #382210
07/03/11 3:20 pm
07/03/11 3:20 pm
Joined: Jan 2009
Posts: 192
Vancouver Island Canada
Salty Dog Offline
BritBike Forum member
Salty Dog  Offline
BritBike Forum member

Joined: Jan 2009
Posts: 192
Vancouver Island Canada
Ben

I agree with Trevor.....the Bunn Breather kit I installed on my '54 B33 works very well.
I think I got it on flea bay


Keep It Greasy
Re: B33 Crankcase Breather Query [Re: B33Ben] #382259
07/03/11 8:49 pm
07/03/11 8:49 pm
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
There haven't been any listed on eBay recently, but I found an email address for Rex Bunn and am awaiting reply.....


Re: B33 Crankcase Breather Query [Re: B33Ben] #382320
07/04/11 10:30 am
07/04/11 10:30 am
Joined: May 2004
Posts: 3,892
Sydney Australia
B
BSA_WM20 Offline
BritBike Forum member
BSA_WM20  Offline
BritBike Forum member
B

Joined: May 2004
Posts: 3,892
Sydney Australia
Rex sells directly but also has ( or had ) agents in both the USA & UK.
I don't see him much now as he has gone back to live in NZ.
I think the USA agent is British Only but am not sure


Bike Beesa
Trevor
Re: B33 Crankcase Breather Query [Re: B33Ben] #382322
07/04/11 11:04 am
07/04/11 11:04 am
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
Hey Trevor,
I got an email from Rex today.
I'm going to try one more thing before I buy one.

The timing cover gasket had a piece missing where the red mark is in the pic below, so that would have been dumping a bit of excess oil into the timing case.
So I'll fix that, reposition the hole in the breather pipe inside the timing case, replace the flapper valve and relocate the end of the vent hose to a more suitable location with a slash cut draft tube end and see if it's any different..
All good fun smile
[Linked Image]

Re: B33 Crankcase Breather Query [Re: B33Ben] #382503
07/05/11 5:48 am
07/05/11 5:48 am
Joined: Sep 2001
Posts: 344
Germany
P
Pete C Offline
BritBike Forum member
Pete C  Offline
BritBike Forum member
P

Joined: Sep 2001
Posts: 344
Germany

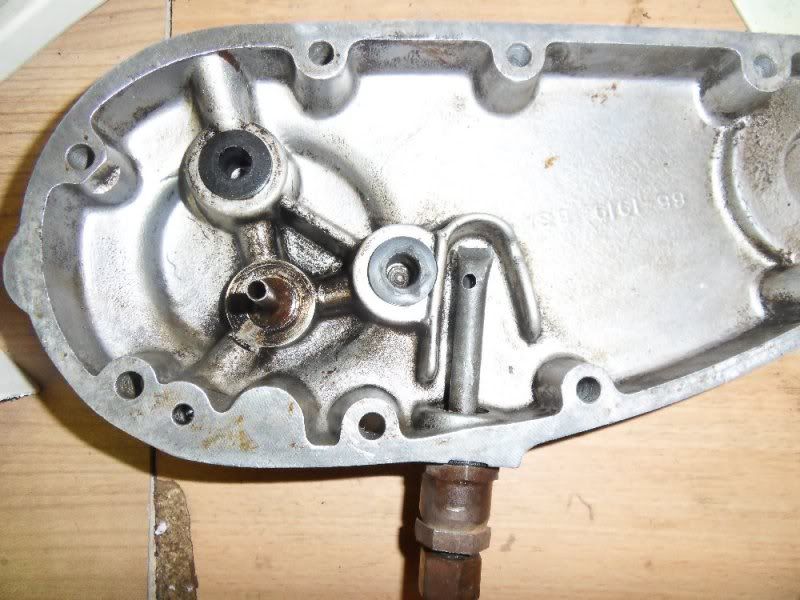

I think the positioning of the hole in the breather has some effect on the amount of oil that gets thrown into it from the pinions etc. From a couple of timing covers that I have it appears BSA tried to address the problem with a different casting to shield the breather somewhat.

[Linked Image]

[Linked Image]

cheers
Pete


Cheers
Pete
Re: B33 Crankcase Breather Query [Re: B33Ben] #382516
07/05/11 7:36 am
07/05/11 7:36 am
Joined: Apr 2011
Posts: 30
The Garage
B
B33Ben Offline OP
BritBike Forum member
B33Ben  Offline OP
BritBike Forum member
B

Joined: Apr 2011
Posts: 30
The Garage
That's interesting Pete, and has given me an idea! cool

Re: B33 Crankcase Breather Query [Re: B33Ben] #382517
07/05/11 7:37 am
07/05/11 7:37 am
Joined: May 2004
Posts: 3,892
Sydney Australia
B
BSA_WM20 Offline
BritBike Forum member
BSA_WM20  Offline
BritBike Forum member
B

Joined: May 2004
Posts: 3,892
Sydney Australia
Yes that spot will allow a good deal more oil than one would like to exit early.


Bike Beesa
Trevor
Re: B33 Crankcase Breather Query [Re: BSA_WM20] #382520
07/05/11 8:23 am
07/05/11 8:23 am
Joined: Sep 2001
Posts: 344
Germany
P
Pete C Offline
BritBike Forum member
Pete C  Offline
BritBike Forum member
P

Joined: Sep 2001
Posts: 344
Germany
I was given a box of B31 etc bits recently which included a breather which had been modified in that a strip of metal had been bent over the pipe and soldered in place, so shielding the hole. Presumably whoever did it has also had problems.
Cheers
Pete


Cheers
Pete
