#369917 - 04/24/11 11:50 pm Pre-unit tach drive question
Joined: Aug 2008
Posts: 1,429
Jim Hultman Offline
BritBike Forum member
Jim Hultman  Offline
BritBike Forum member

Joined: Aug 2008
Posts: 1,429
Minnesota, US
I've done a lot of searching on this, and even found a really old post by Mr. Whitley:
Originally Posted By: Jon W. Whitley
On page 14 of Replacement Parts Catalogue No.16, you will will find the part number of the tach drive timing cover, it's components and applications TR6 and T120. This is located in the Carton Pack List section of the book.
beerchug

My question is about the connection between the tach drive and the tach cable. I ordered a cable, but it came with the usual square ended cable. It appears that the tach drive is for a spade end. I've seen this setup before, but am not familiar with the Triumph version.

John was right that the parts list is on page 14 of the parts catalog. (By the way, thanks for that John. I searched and searched for that listing and couldn't find it! confused ) However, there doesn't seem to be a part that would connect the square cable end to the spade fitting on the drive.

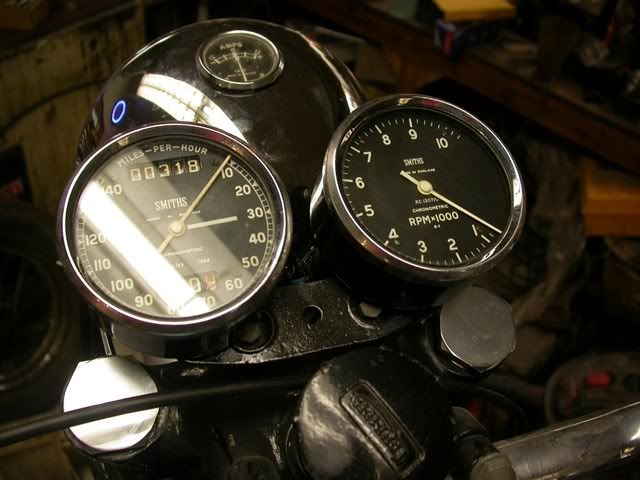

I think my instruments are original.



Anyone know what I'm missing here?

Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
#369922 - 04/25/11 12:17 am Re: Pre-unit tach drive question [Re: Jim Hultman]
Joined: Aug 2001
Posts: 6,667
Jon W. Whitley Online content
Jon W. Whitley  Online Content



Joined: Aug 2001
Posts: 6,667
Vermont
Jim,

Glad to be of service wink

I'll be able to check my cable on Tuesday evening...if you don't get an answer by then, I'll see what I can do.


Jon W.


1957 6T Thunderbird 650
1971 TR6R Tiger 650
1955 Tiger 100 - Project
1970 BSA A65F 650 - Project

#369943 - 04/25/11 2:19 am Re: Pre-unit tach drive question [Re: Jim Hultman]
Joined: Oct 2003
Posts: 11,108
RF Whatley Offline
BritBike Forum member
RF Whatley  Offline
BritBike Forum member

Joined: Oct 2003
Posts: 11,108
North Georgia, USA
I believe that's the same part as used on all unit construction bikes with tach. It's probably changed part number 10 times since the pre-unit days, but the unit part might be the only one stocked now.


Don't hide 'em, Ride 'em !!

RF Whatley
Cornelia, GA

"Shop Boy" at Rodi British Bikes
#370098 - 04/25/11 10:35 pm Re: Pre-unit tach drive question [Re: RF Whatley]
Joined: Aug 2008
Posts: 1,429
Jim Hultman Offline
BritBike Forum member
Jim Hultman  Offline
BritBike Forum member

Joined: Aug 2008
Posts: 1,429
Minnesota, US
Originally Posted By: RF Whatley
I believe that's the same part as used on all unit construction bikes with tach. It's probably changed part number 10 times since the pre-unit days, but the unit part might be the only one stocked now.

Hadn't thought of that. Too simple! grin

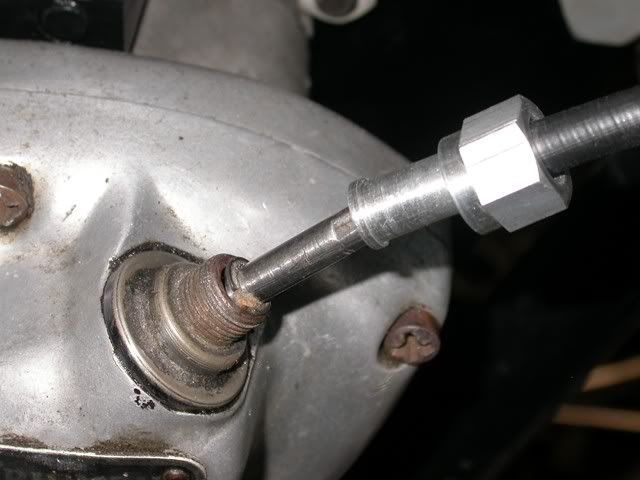

So I took a unit spade drive and tried to fit it to the pre-unit:



It fits in the drive OK.

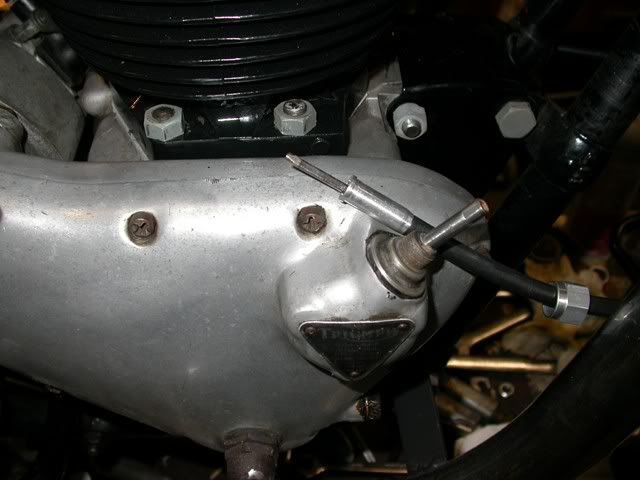

But either I have the wrong cable or I need a different spade drive. Not sure if any spade would work with this. Too much cable extruding from the sheath when then top of the cable is connected to the tach. I'm starting to think it's a wrong cable.

#370178 - 04/26/11 10:12 am Re: Pre-unit tach drive question [Re: Jim Hultman]
Joined: Jan 2005
Posts: 1,655
Dick Harris Online content
BritBike Forum member
Dick Harris  Online Content
BritBike Forum member

Joined: Jan 2005
Posts: 1,655
East Bethany New York
I just looked at one of mine and the metal part of the lower cable is about 1 1/2 inches long, above the nut.It appears the one you have is much shorter? That would give room for the spade shown in the picture. Dick

#370844 - 04/30/11 1:29 am Re: Pre-unit tach drive question [Re: Dick Harris]
Joined: Aug 2008
Posts: 1,429
Jim Hultman Offline
BritBike Forum member
Jim Hultman  Offline
BritBike Forum member

Joined: Aug 2008
Posts: 1,429
Minnesota, US
Originally Posted By: Dick Harris
I just looked at one of mine and the metal part of the lower cable is about 1 1/2 inches long, above the nut.It appears the one you have is much shorter? That would give room for the spade shown in the picture. Dick


Like this?



It takes the longer end to accept the spade drive. I dug around in the old cable box and came up with these. The new cable I ordered is evidently the wrong one.

I'm still confused. If you mount the cable sheath with the longer end over the spade drive, the little clip on the end of the spade would be trapped when you tighten the cable down. I think it might work without the clip, but it doesn't look right to me.

Does anyone know what differences there are between the unit tach cables and the pre-unit?

#370960 - 05/01/11 1:51 am Re: Pre-unit tach drive question [Re: Jim Hultman]
Joined: Aug 2001
Posts: 6,667
Jon W. Whitley Online content
Jon W. Whitley  Online Content



Joined: Aug 2001
Posts: 6,667
Vermont
Jim,

Here is my tach drive cable. It works great. I would think you need the clip.









Jon W.


1957 6T Thunderbird 650
1971 TR6R Tiger 650
1955 Tiger 100 - Project
1970 BSA A65F 650 - Project

#371058 - 05/01/11 7:17 pm Re: Pre-unit tach drive question [Re: Jim Hultman]
Joined: Aug 2008
Posts: 1,429
Jim Hultman Offline
BritBike Forum member
Jim Hultman  Offline
BritBike Forum member

Joined: Aug 2008
Posts: 1,429
Minnesota, US
Thanks Jon!

I've been poking around a bit on this question, and it seems that the unit Triumphs use the same setup. In fact, pretty much all the external tach drives I looked at, including the Enfield twin and the older Nortons, use the same style cable, with the extended end allowing for the spade drive. Also, the BSA and Triumph triples seem to use the long cable end. Didn't take them apart, but that must mean they use a spade drive.

The only bikes I looked at without the extended end, which obviously then use a direct square drive, were the BSA units and later Norton Commandos.

I'd never thought about this before. Now I'm wondering what cable I was sent, and it makes me wonder if there is a Triumph that uses the square drive instead of the spade drive. Curious.
