Re: Polarise Dynamo [Re: kngkong] #364888
03/26/11 12:59 am
03/26/11 12:59 am
Joined: Jul 2009
Posts: 3,549
Vic. Australia
P
Pete R - R.I.P. Offline
In Remembrance
Pete R - R.I.P.  Offline
In Remembrance
P
Joined: Jul 2009
Posts: 3,549
Vic. Australia
Any time you fiddle with the regulator box,its a good idea to dis-connect the battery first.
The best thing I've found to clean regulator points is a ground down hacksaw blade.Grind it thin,so it fits between the points.Grinding marks,running across the saw blade, act like a smooth file.
With the regulator points closed (normal condition),there should be almost no resistance between F and D regulator terminals.Disconnect F and D wires from the dynamo when you test this.If F and D wires are connected to the regulator,there should be almost no resistance between them.
When the regulator points open there will be resistance between F and D,somewhere about 50 ohm.

The regulator points will stay closed until the voltage at D equals 7.8V +/- 0.2V.
The cut-out relay will connect D output to the ammeter or battery,when voltage at D exceeds 6.5V +/- 0.2V .

Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
Re: Polarise Dynamo [Re: Pete R - R.I.P.] #364915
03/26/11 3:57 am
03/26/11 3:57 am
Joined: Oct 2009
Posts: 208
Wellington, NZ
K
kngkong Offline OP
BritBike Forum member
kngkong  Offline OP
BritBike Forum member
K
Joined: Oct 2009
Posts: 208
Wellington, NZ
Thanks, Pete. Sounds like my regulator settings are way out.

Im going to try and adjust the regulator according to the workshop instructions.


1951 5T Speedtwin
Re: Polarise Dynamo [Re: kngkong] #364924
03/26/11 5:40 am
03/26/11 5:40 am
Joined: Oct 2009
Posts: 208
Wellington, NZ
K
kngkong Offline OP
BritBike Forum member
kngkong  Offline OP
BritBike Forum member
K
Joined: Oct 2009
Posts: 208
Wellington, NZ
wow, that was fun
fingers crossed, I think Im on my way

I adjusted the 'regulator' side of the regulator per the workshop instructions and now Ive got headlight when the fuse is out. I havent taken it for a ride yet but it also seems like Im getting some kind of charge to the battery. Going to do some more tests and see if I need to adjust the cut out.

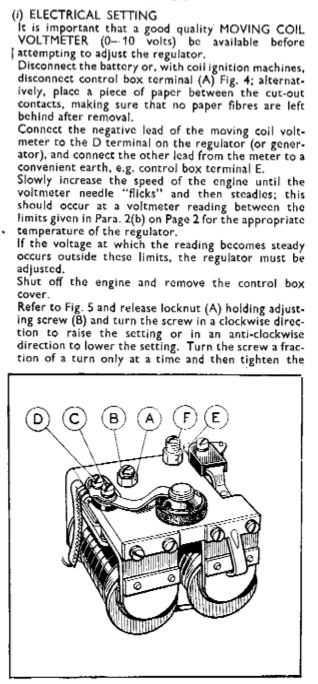

this is what ive done so far
