BritBike Forum logo
BritBike Sponsor BritBike Sponsor BritBike Sponsor
BritBike Sponsor

BritBike Sponsor

BritBike Sponsor
BritBike Sponsor BritBike Sponsor BritBike Sponsor
JWood Auction JRC Engineering dealers JWood Auction
Home | Sponsors, Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons, "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Photo posting tutorial

Member Spotlight
MikeTRP
MikeTRP
Melbourne, Australia
Posts: 69
Joined: September 2001
Show All Member Profiles
Shout Box
Search eBay for motorcycle parts in following countries
Australia, Canada, France, Holland, Italy, United Kingdom, USA
Random Gallery photo
Who's Online Now
190 registered members (1xfatboy), 1,751 guests, and 605 spiders.
Key: Admin, Global Mod, Mod
Newest Members
iansouthoz, Lightning Sim, Simon.Holyfield, Bushcreature, Gary Shackleton
10035 Registered Users
Top Posters(30 Days)
Lannis 144
kommando 105
Stuart 67
Popular Topics(Views)
476,705 mail-order LSR
Forum Statistics
Forums33
Topics65,721
Posts635,225
Members10,035
Most Online3,995
Feb 13th, 2017
Like BritBike.com on Facebook

Previous Thread
Next Thread
Print Thread
Rate Thread
Page 1 of 6 1 2 3 4 5 6
Overhaul on the A65 #212693
12/27/07 12:53 pm
12/27/07 12:53 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
This started with the idea of reconditioning the head which had worn guides last time it was apart almost 2 years ago, and fitting new rings and shells.
It naturally got more complicated.
So main bearings have been replaced. Crank split and sludge cleaned out, and re-ground for Mini Cooper shells which are -.050" and a little complicated to do.

One piston was cracked, as was its liner, mainly because I didn't look at it hard enough when fitting, and failed to see the skirt started lower resulting in the piston not being well supported at BDC with part of the skirt out of the bore. I drew up what piston dimension would be needed to keep all the skirt in the bore and Ed V's forged B44 pistons are an exact match.


T/side crank case had a crack to weld and re-inforce, must be the weakest point between the main bearing and cyl, just infront of the idler gear, I've filled the breather hole, which shouldn't matter as its set to breath through the primary rather than the cam.

This is a trial assembly with the old cyls, crank spinns freely and is located by the 3rd bearing outside the alternator.

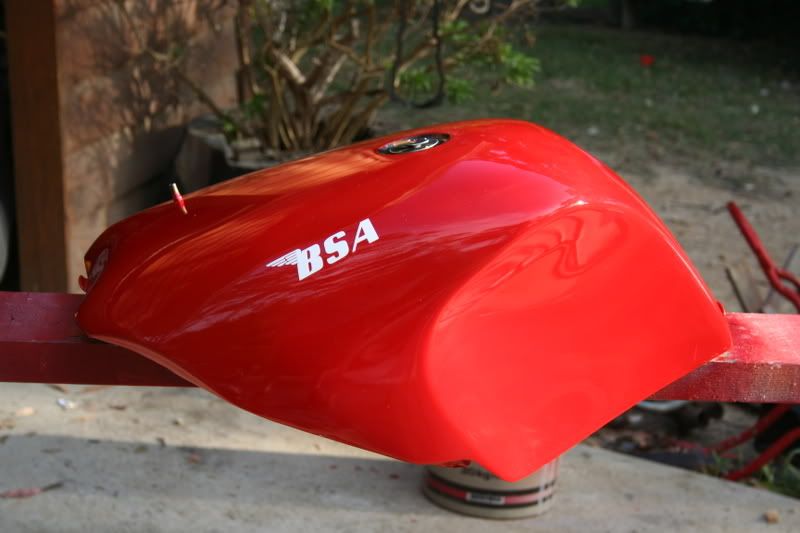

Its even getting new paint, first time I've used 2 pack clear (the softer acrylic wears through so I'm hopeing this will last longer), I'm impressed with how shiny it is straight off the gun.


mark
Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
Re: Overhaul on the A65 #212694
12/27/07 1:01 pm
12/27/07 1:01 pm
Joined: Nov 2005
Posts: 706
Tennessee
Fisherman Offline
BritBike Forum member
Fisherman  Offline
BritBike Forum member
Joined: Nov 2005
Posts: 706
Tennessee
Mark, I had expected to see you working in a hermetically sealed laboratory on that engine.
That appears to be your back porch!


'Never argue with an idiot, they'll bring you down to their level, and beat you with experience'

'72 TR6
'12 Hinckley Scrambler
'95 FLHTC Road Sofa
Re: Overhaul on the A65 #212695
12/27/07 1:26 pm
12/27/07 1:26 pm
Joined: Aug 2001
Posts: 372
Iowa
konon Online content

BritBike Forum member
konon  Online Content

BritBike Forum member
Joined: Aug 2001
Posts: 372
Iowa
Mark, are your alloy cylinder barrels holding up as well as expected ?


1968 BSA Firebird
1200 HD
XS 1100
1972 Rickman 125
Re: Overhaul on the A65 #212696
12/27/07 2:31 pm
12/27/07 2:31 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
My expectations were not particularly high, this first set I had trouble getting someone to machine, (Though they did the top and bottom surfaces)so in my hermetically sealed chamber with a cheap drill press, hacksaw, diegrinder, tap seat cutter and file I did the rest, except for boreing and fitting sleeves.
I think the basic thing is fine, though I sabotaged myself by thinning the lower sections of the cyls too much because I wanted to fit them without machining out the top of the C/cases and get filings in the assembled motor. I'm hopeing to have a properly machined set soon with Nicasil bores rather than liners.


mark
Re: Overhaul on the A65 #212697
12/27/07 4:19 pm
12/27/07 4:19 pm
Joined: Jan 2006
Posts: 6,751
Laredo (South) Texas, USA
GrandPaul Online content
BritBike Forum member
GrandPaul  Online Content
BritBike Forum member
Joined: Jan 2006
Posts: 6,751
Laredo (South) Texas, USA
Very nice. Is that a hot rod streeter, or a track bike?


GrandPaul (does not use emoticons)
Author of the book "Old Bikes"
Too many bikes to list, mostly Triumph & Norton, some BSA & European
"The Iron in your blood should be Vintage"
Re: Overhaul on the A65 #212698
12/27/07 4:57 pm
12/27/07 4:57 pm
Joined: Jul 2005
Posts: 1,919
new jersey usa
J
John RGS Offline
BritBike Forum member
John RGS  Offline
BritBike Forum member
J
Joined: Jul 2005
Posts: 1,919
new jersey usa
Mark's got one of those imported French corrugated non-slip bench top -tank drying rack combo's. I can tell by the legs in the third photo. Same model as mine. A bit pricey but worth the extra cash!


,_o
_ -\_<,
(*)/'(*)

NOPGS #2
Re: Overhaul on the A65 #212699
12/29/07 1:39 pm
12/29/07 1:39 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia

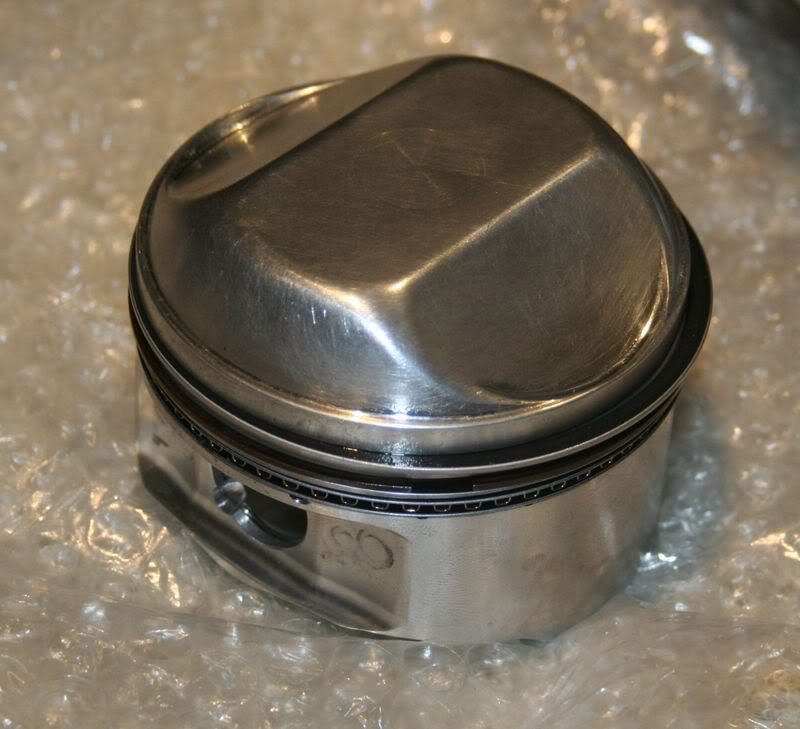

This is the new oil can, and pistons in the old cyls, the cases are not a matched set and I've been adjusting the deck where the cyl sits to try getting it exactly square to the crank, which wasn't the case before. I've tried measuring a few different ways with the calipers but it still looks 10 thou or so out looking at the piston at TDC. If I measure off the piston pins the rods can rock very slightly, measuring between the hole for T/S mainbearing or D/S oilseal hole and the case deck, then adding half the dia of the respective hole, is what seems easiest. So I've filed the cases deck to match the measurements, and used bearing blue to get it flat in good contact with the block.



Yes, non slip drying rack frown I only had the one set up, (probably need to send to France for another)so tank and seat were taking turns, the seat was perfect like glass except for under where the tail light goes, hardly visible when together but I had a little clear still in the gun from the tank (on the spray rack), so I sat the seat on a bucket and sprayed the under bit which made it slip off the bucket and roll along the ground. Reminds me of a Harley I worked on, getting the motor running plus painted a nice flame job all airbrushed etc, back brake didn't work but I still tried it slowly up the gravel drive, there was no way to match in all the airbrusing so I got some little stickers made that covered the offending gravel marks, it probably ended up looking better.


mark
Re: Overhaul on the A65 #212700
01/01/08 5:36 am
01/01/08 5:36 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
The std twin carb A65 head weighs 9LB 9.5oz, it can be lightened to 8LB 7.7oz; a worth while weight saving, smile useing a tool like this:

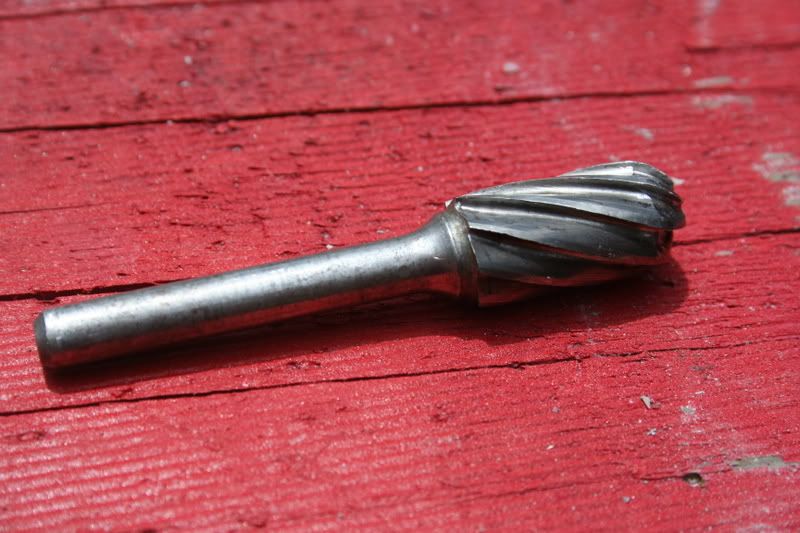

When I first went to buy a tool for this I could so strongly imagine a brake cyl hone neatly grinding out the alloy I bought it even though the salesman said it would be absolutely useless for my purpose.
My son Ben suggested I use a texta to mark the valve seats so as to be able to clearly see the angles I was cutting, trying to accomplish 3 angle seats, to optimize gas flow.

The exhaust seat is black where the 30deg top cut and 60deg cut is in the throat with the 45deg showing a silver ring, the 60 deg is not real wide and blends into a steeper angled port, same with the bigger dia inlet which also shows a 70deg silver throat inside the black 60deg ring and silver 45 ring and black 30deg blend to combustion chamber.
For a long time I've been useing oversize valves in 650-750-810 and 883cc A65s. 44.5mm inlets and 39.5mm exhausts, (modified 6cyl Jaguar valves.) Std inlets weigh 70.8g these are 77.9g. I've tried 36mm carbs but boreing them to 38mm made an immediate improvement, and reading the formula in the tech papers in the MAP catalogue on the relationship between valve size and carb size 38mm is closer to the ideal.

The dark areas in the port are epoxy JB weld, filling holes.
This is a simplistic calculation ignoring some variables but if power is proportional to the burning of air and fuel then with the same head/carbs and breathing at 100 percent efficiency; 883cc at 7,000RPM = 6181000cc of burnable air per 2 min, 744 at 9000RPM = 6696000cc or 8,500 = 6324000cc. 650 at 9000 = 5850000cc.
The relationship is like 61.8HP for the rpm limited long stroke 883. 63-67Hp for the shortstroke 744 depending on RPM peak or 58.5HP for the 650 at high rpm. Feel free to tell me where these calculations go wrong, but note the HP is just to show relationship not actual.
At the moment I'm riding a modified SV650 8valve twin with 39mm carbs with 62HP on the data logger at around 9,000RPM it had 55-57 standard. The best from the 883 before was 72HP on the data logger. So in my theory if everything can be made to stay together and the A65 breathing be made to match the 8valve it should make similar power at similar displacement and RPM? So thats what I'm trying to do with the head.


mark
Re: Overhaul on the A65 #212701
02/02/08 2:00 pm
02/02/08 2:00 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Working on a new and improved fairing during the last couple of weekends, the previous version had the lights mounted in the fairing which wasn't very convenient, my plan is to be able to remove the fairing with 3 or 4 screws leaving the lights oilcooler and ramair snorkels mounted in place, so I can use it without the fairing, and also access wireing etc easily. The lights are 104mm approx, and I'll run the left for low beam with a 40 or 50w globe wired to the light switch so it stays on with high or low beam selected, with a 100W globe in the R/hand light for main high beam.


Fibre glassing in such hot weather is good because its pretty fast but cutting holes for the lights and oilcooler and trimming up edges, makes one a bit itchy, not being able to stay covered up well enough due to the heat.

This is it from the front, just out of the dodgey mould with holes for lights and oilcooler roughed out. The cardboard box sets the height to keep the fairing off the front guard with the forks compressed. The holes on either side are air intakes for the motor, air goes through 2 snorkels up under the front of the tank to an airbox feeding the carbs. I'll probably also modify the airbox so the whole of the carbs are in it, so I don't have to feed vent pipes (difficult to get at)into the airbox. When it pressurizes a bit if only the carb intake is in the box it can stop the flow of fuel, because the vents to the bowl, unless they are also in the box, will have lower air pressure to push the fuel up through the jets. Like that a light throttle in a high gear into a headwind can get the motor surging to the point of almost cutting out.


mark
Re: Overhaul on the A65 #212702
02/02/08 3:25 pm
02/02/08 3:25 pm
Joined: Jan 2006
Posts: 6,751
Laredo (South) Texas, USA
GrandPaul Online content
BritBike Forum member
GrandPaul  Online Content
BritBike Forum member
Joined: Jan 2006
Posts: 6,751
Laredo (South) Texas, USA
Good luck jetting properly with ram-air induction!

The amount of air pressure varies with speed, so will you tune it optimally for the higher gears and suffer in the bottom gears, or the other way 'round?

In other words, jetting that is spot-on for half throttle in 2nd gear is going to be stuffed at half throttle in top gear.


GrandPaul (does not use emoticons)
Author of the book "Old Bikes"
Too many bikes to list, mostly Triumph & Norton, some BSA & European
"The Iron in your blood should be Vintage"
Re: Overhaul on the A65 #212703
02/03/08 6:10 am
02/03/08 6:10 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Its had ram air for some years now and provided the carb vents are also in the pressure zone as stated above it seems good. I don't know if it might effect CV carbs worse, because Jap bikes with it can have quite complex systems. Airboxs can be sensative, I enlarged the intake hole on one on a VFR I had and it messed it up, I had a ram air system on that and had to not seal it properly because I couldn't get the vents into the pressurized area, so at least it still got cooler air.


mark
Re: Overhaul on the A65 #212704
02/03/08 11:27 am
02/03/08 11:27 am
Joined: Jan 2005
Posts: 1,655
East Bethany New York
Dick Harris Offline
BritBike Forum member
Dick Harris  Offline
BritBike Forum member
Joined: Jan 2005
Posts: 1,655
East Bethany New York
Morn'n Mark,nice work!! I was wondering why you went to -.050 on your rod journals? confused Dick

Re: Overhaul on the A65 #212705
02/03/08 11:55 am
02/03/08 11:55 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Hi Dick,
I had the S/hand crank ground -.040" in 1992 and its been in use since, and had worn a bit oval, I investigated having it welded and reground but the mini shells seemed a better option.


mark
Re: Overhaul on the A65 #212706
02/03/08 12:32 pm
02/03/08 12:32 pm
Joined: Aug 2001
Posts: 3,871
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M
Joined: Aug 2001
Posts: 3,871
Cape Carteret, NC
Mark,
Always nice to hear about your projects. We have most of the same hi tech equipment that you have....cardboard boxes, driveways, paint cans, but we lack your ingenuity and brains. You re-invent BSA's, we just try to make what he got run. Can't wait to hear about your project screaming down the interstate at 125mph.

Mr Mike

Re: Overhaul on the A65 #212707
02/03/08 6:44 pm
02/03/08 6:44 pm
Joined: Jan 2005
Posts: 1,655
East Bethany New York
Dick Harris Offline
BritBike Forum member
Dick Harris  Offline
BritBike Forum member
Joined: Jan 2005
Posts: 1,655
East Bethany New York
Thanks Mark,your projects are really interesting. I was wondering about the -.050 rod throws and do you think that it will weaken it any.(guess you don't or you wouldn't have done it) :rolleyes: Dick

Re: Overhaul on the A65 #212708
02/10/08 7:21 am
02/10/08 7:21 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia

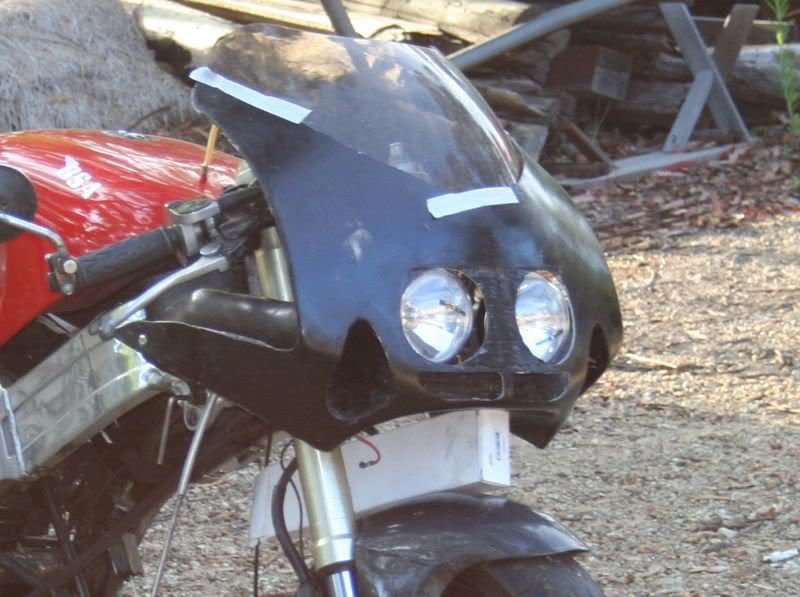

A bit more progress on the fairing on saturday. If anyone is interested, the front of this fairing gets a bit complex with all the holes for different things, I'd originally made the mould with the outer air intakes and with an opening for a single rectangularish headlight and no oil cooler for Ben's RGV A65.
So to fair it in to the twin lights and oil cooler I cut up some cheap thin plastic throwaway pots that my wife had purchased plants for the backyard jungle. Curved the cut strips into the holes and pushed them up against the lights then pushed in second curved rings to give clearence and taped it in place. Removed the fairing, gel coated outside what plastic protruded on the H/light side then added a couple of layers of chop strand and glass. Did similar with the oil cooler hole, and body filled to smooth.

I now need to fit the screen properly and straighten everything up so it looks as square and even as possible, a large difficulty making stuff is getting both sides the same, and its really important on the fairing when viewed from the front.


mark
Re: Overhaul on the A65 #212709
02/26/08 10:08 am
02/26/08 10:08 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia

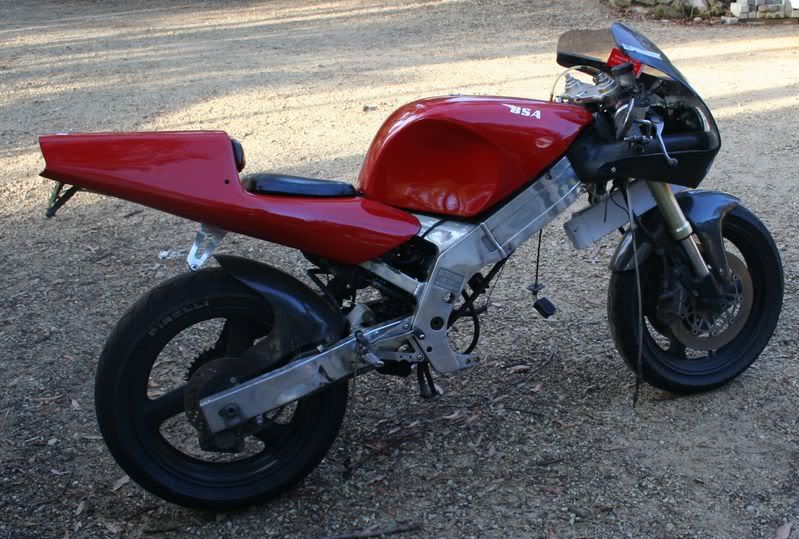

This shows the difference between the new and old fairing, should look pretty funky with the motor back in going along. New fairing is 1kg, old is 2kg probably from all the repair after I hit a Kangaroo a few years ago. By the time I make some alloy brackets to secure the upper part it'll likely end up as heavy, but be much more convienient, plus have better air intakes.



mark
Re: Overhaul on the A65 #212710
02/27/08 7:35 am
02/27/08 7:35 am
Joined: Dec 2007
Posts: 128
fowler , ohio
O
oleblu72 Offline
BritBike Forum member
oleblu72  Offline
BritBike Forum member
O
Joined: Dec 2007
Posts: 128
fowler , ohio
That bike is way to cool Mark,nice job on the fairing. What is the displacement on your bike? Mark

Re: Overhaul on the A65 #212711
02/27/08 10:34 am
02/27/08 10:34 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
This motor is 883, 79.5mm bore by 89mm stroke.


mark
Re: Overhaul on the A65 #212712
07/23/08 11:31 am
07/23/08 11:31 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Cylinders are nearly ready for plating. And I should be able to finaly assemble the bottom end now that I can fit the cyls and position the crank. This doesn't have much room between rods and piston at the pin, plus the bore centres are slightly closer, so it needs very precise crank setting so as not to have rods side loading the pistons. I cut the tops off the old pistons, which are the same dia, so it should make this operation easy.


mark
Re: Overhaul on the A65 #212713
07/23/08 12:22 pm
07/23/08 12:22 pm
Joined: Sep 2002
Posts: 7,812
Seattle
Alex Offline

BritBike Forum member
Alex  Offline

BritBike Forum member
Joined: Sep 2002
Posts: 7,812
Seattle
Wow Mark. That's a nice piece of kit there.


A smattering:
'53 Gold Flash
'67 Royal Star
'71 Rickman Metisse
'40 Silver Star
'37 Rudge Special
sixtyseventy Lightboltrocket road racer...and many more.
Re: Overhaul on the A65 #212714
08/07/08 9:05 am
08/07/08 9:05 am
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Getting the crank set in the right position took a bit of doing, its now got about .010" end float between main bearings with the outrigger bearing holding it inside that I hope. So these are the modified old pistons used to see where to line it up, the new pistons have much less clearance at the pin boss to rod so need to be as centred as possible.



The new cyl looking like it will work, just needs the plateing and the top surface set to get compression down around 10 or 10.5-1.
The welding on the case just in front of the idler gear seems the location of the weakest point, it started cracking through as the motor tried to drive the crankshaft away from the head I expect, so the breather hole that was there is filled and a plate welded on.



mark
Re: Overhaul on the A65 [Re: Mark Parker] #215982
09/29/08 1:41 pm
09/29/08 1:41 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Finally its going together, and the Cyls are plated, and pistons have sharp edges blended, compression should be down to about 10-1 but gapless rings may still make it hard to start if they prevent leak down.



Timing it might be fun because I never did know exactly where it was before, If the carbs are adjusted the same as when I took them off idle speed might tell me when it's close. I'll try around 32deg to start with as it will be less inclined to try taking my leg off.


mark
Re: Overhaul on the A65 [Re: Mark Parker] #216599
10/02/08 1:51 pm
10/02/08 1:51 pm
Joined: Aug 2001
Posts: 372
Iowa
konon Online content

BritBike Forum member
konon  Online Content

BritBike Forum member
Joined: Aug 2001
Posts: 372
Iowa
Mark, very interesting build. I'll be waiting for a performance report.


1968 BSA Firebird
1200 HD
XS 1100
1972 Rickman 125
Re: Overhaul on the A65 [Re: konon] #219042
10/16/08 1:24 pm
10/16/08 1:24 pm
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
Mark Parker Online content OP
BritBike Forum member
Mark Parker  Online Content OP
BritBike Forum member
Joined: Apr 2005
Posts: 2,337
Bega NSW Australia
The motor is pretty much assembled, with an unbelievable number of bodges to make everything fit, and I'm setting the tappets.
What I have is alloy head and cyl and C/molly pushrods, the std alloy p/rods flex and lose a little power, and I don't seem to be able to get the bigger tubular alloy ones anywhere, and even then may have clearance problems if I did.
The expansion rate of the alloy is different to the C/molly and the hot clearances will be different, does anyone know how much? Or have an idea of the hot tappet clearances for a std A65?
Cold is 8 and 10thou and perhaps I should halve that or go even less, like 3 and 4thou?


mark
Page 1 of 6 1 2 3 4 5 6

Moderated by  Richrd


Home | Sponsors | Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons | "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Powered by UBB.threads™ PHP Forum Software 7.6.1.1
