Pre-unit 8" brake plate HELP!/ID (part numbers) #215901
09/28/08 10:51 pm
09/28/08 10:51 pm
Joined: May 2007
Posts: 89
San Diego
L
lurkingclass Offline OP
BritBike Forum member
lurkingclass  Offline OP
BritBike Forum member
L
Joined: May 2007
Posts: 89
San Diego
I'm putting a wheel together for my Triumph and I'm trying to figure out which brake plate is the right one. I have all the factory manuals (except '57...) and they just list the brake plate assembly as w1073- no mention of this w1057 or w1248. You can see the difference between the two, and I know I can make it work, but I'm just curious which one is correct for the pull through axle (pre '57?) and which is for the fixed axle? Any of you Triumph gurus care to clarify? If anyone is running one of these wheels, can you post a few close up pics? Thanks.

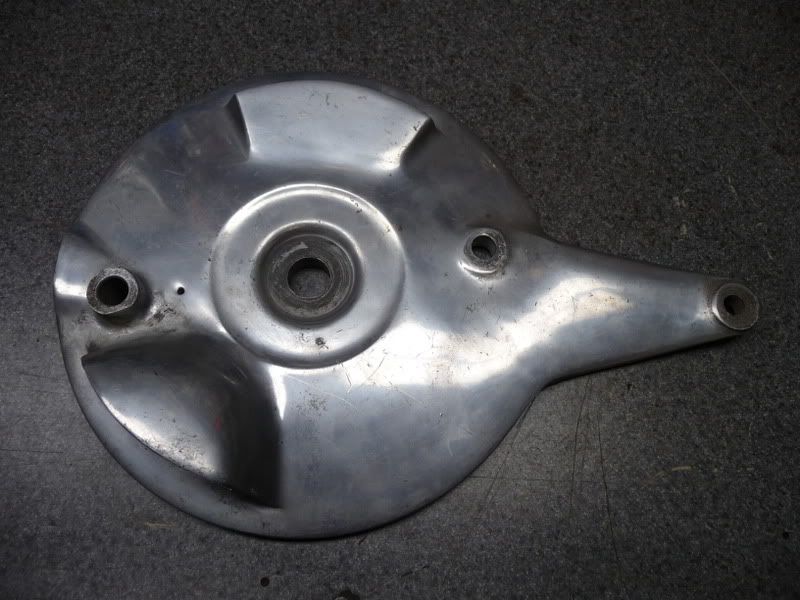

Here's the w1057-

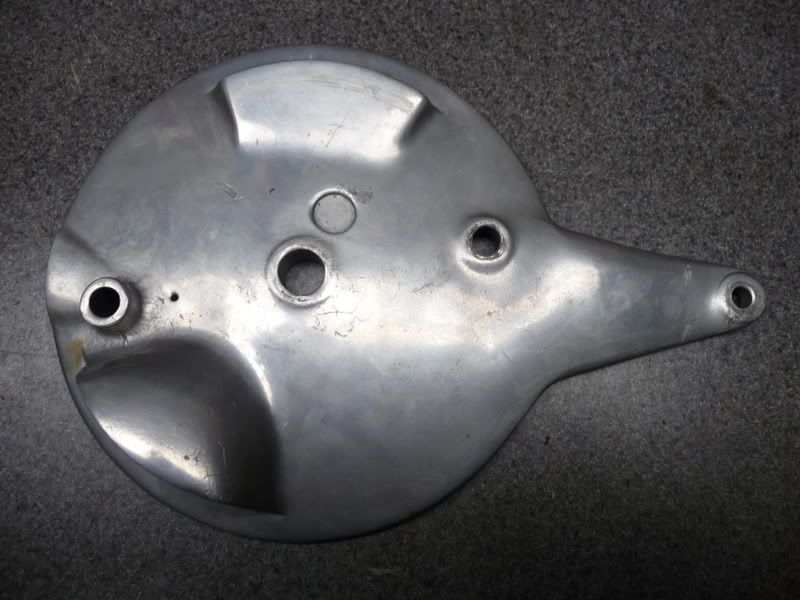

and the w1248-




Last edited by lurkingclass; 09/28/08 10:53 pm.
Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
Re: Pre-unit 8" brake plate HELP!/ID (part number [Re: lurkingclass] #215928
09/29/08 1:43 am
09/29/08 1:43 am
Joined: Oct 2003
Posts: 11,148
North Georgia, USA
RF Whatley Online content
BritBike Forum member
RF Whatley  Online Content
BritBike Forum member
Joined: Oct 2003
Posts: 11,148
North Georgia, USA
IMHO, the plate in photo number 1 is correct. I've never seen a plate like photo #2 with the large central relief.

Air scoops were only used on the "go fast model", the T110.


bigt


Don't hide 'em, Ride 'em !!

RF Whatley
Cornelia, GA

"Shop Boy" at Rodi British Bikes
Re: Pre-unit 8" brake plate HELP!/ID (part numbers) [Re: lurkingclass] #215937
09/29/08 2:27 am
09/29/08 2:27 am
Joined: Aug 2001
Posts: 6,798
Vermont
Jon W. Whitley Online content

BritBike Forum member
Jon W. Whitley  Online Content

BritBike Forum member
Joined: Aug 2001
Posts: 6,798
Vermont
The second brake plate is for a 1957 model. It used a similar axle as the full width hubs and was meant to fit into the new fork legs for that year.

The first one is of course for an earlier model 1954-1956 and the one you need for the push through axle.

The part numbers in the book refer to a complete brake plate with brake shoes and other parts.

beerchug

Richard:
These brakes were found on the T100, T110 from 1954 and in 1957, the TR6.

beerchug


Jon W.


1957 6T Thunderbird 650
1968 T100R Daytona 500
1971 TR6R Tiger 650
1970 BSA A65F 650
1955 Tiger 100 - Project

Re: Pre-unit 8" brake plate HELP!/ID (part numbers) [Re: Jon W. Whitley] #216116
09/30/08 1:29 am
09/30/08 1:29 am
Joined: May 2007
Posts: 89
San Diego
L
lurkingclass Offline OP
BritBike Forum member
lurkingclass  Offline OP
BritBike Forum member
L
Joined: May 2007
Posts: 89
San Diego
That's exactly what I needed to know. Thanks for the help guys.
