66 spitfire #440309
06/15/12 1:26 pm
06/15/12 1:26 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
The BSA catalogue and a picture of a show model feature black headlight brackets for the 66 Spitfire , whereas all the ones I have seen restored are chromed. Which is correct?
Cheers Malc

Support Your #1 BritBike Forum!
Membership Type! Free
Member
Premium
Member
Premium Life
Member
Vendor
Member
Site
Sponsor
Recognition No Premium Member Premium Life member (5 years) Vendor Member Site Sponsor Membership
Post commercial threads No No No Yes Yes
Custom title No Yes Yes Yes Yes
Upload avatar & photos No Yes Yes Yes Yes
Link avatar & photos Yes Yes Yes Yes Yes
Private Message Storage: 10 100 100 100 100
Length of signatures 255 600 600 600 600
Removes this very advert island between post 1&2 No Yes Yes Yes Yes
Price Free $12.90/year $105.00 No End
$55.00/5 years
$210.00/year
($17.50/month)
Email
Click on button >>
  Premium Member Premium Life member Vendor Member Site Sponsor Membership
Re: 66 spitfire [Re: furymalc] #440361
06/15/12 8:15 pm
06/15/12 8:15 pm
Joined: Feb 2005
Posts: 6,253
NYC and York PA
wadeschields Online content
BritBike Forum member
wadeschields  Online Content
BritBike Forum member
Joined: Feb 2005
Posts: 6,253
NYC and York PA
Chromed


http://wadeschields.tumblr.com/

Jack of all trades . Master of fun! wink

Beer is not the Answer.... Its the Question..... The answer is YES

[Linked Image]
Re: 66 spitfire [Re: wadeschields] #440382
06/15/12 10:14 pm
06/15/12 10:14 pm
Joined: Apr 2008
Posts: 313
Terry MS, USA
R
Randy Pigford Online content
BritBike Forum member
Randy Pigford  Online Content
BritBike Forum member
R
Joined: Apr 2008
Posts: 313
Terry MS, USA



Re: 66 spitfire [Re: furymalc] #440493
06/16/12 7:05 pm
06/16/12 7:05 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Thanks for the replies guys, I just wondered if they started off black then changed to chrome.Obviously not then.

Cheers Malc

Last edited by furymalc; 06/16/12 7:06 pm.
Re: 66 spitfire [Re: furymalc] #440502
06/16/12 7:30 pm
06/16/12 7:30 pm
Joined: May 2009
Posts: 176
MN
S
Shades34 Offline
BritBike Forum member
Shades34  Offline
BritBike Forum member
S
Joined: May 2009
Posts: 176
MN
If it was a show model or an early print of a 66 catalogue they may have been black until a change before release? I got chrome ones with my 66 project spitfire. I have seen one with black but there is no way of knowing when or if it was changed during it's life as it was a restoration.

Re: 66 spitfire [Re: furymalc] #442177
06/27/12 6:36 pm
06/27/12 6:36 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Hi Guys
Another question about my 66.

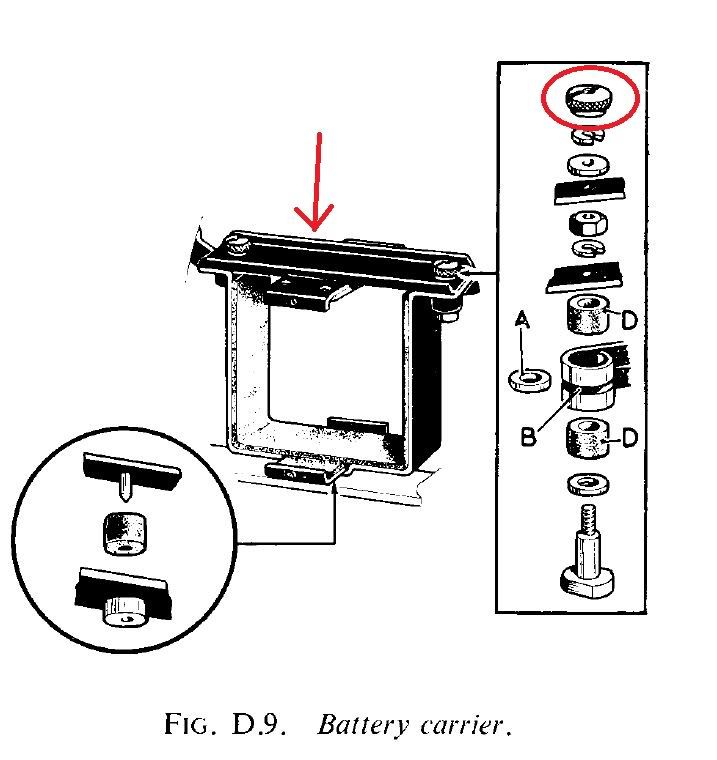

My parts book shows a different battery carrier to the one I have.
But the workshop manual shows one like mine .
The top piece and the knurled nuts are missing,are these correct for the year?.
Does anyone know the part numbers for these?

Cheers Malc

Re: 66 spitfire [Re: furymalc] #442182
06/27/12 7:45 pm
06/27/12 7:45 pm
Joined: Mar 2012
Posts: 168
Draper, Utah
F
Fullminator Offline
BritBike Forum member
Fullminator  Offline
BritBike Forum member
F
Joined: Mar 2012
Posts: 168
Draper, Utah
I know that Rabers in San Jose CA has these knurled nuts in stock. I dont know the part number off the top of my head, but I do have a parts book that lists them. I can check tonight when I am home. Also I have found the special bolt that holds all of this together to be too short, and the replacement new part (also from Rabers) to be too short as well. I am thinking I am going to have a machine shop make me some longer ones. Also the new replacement rubber pieces for this application are pretty crappy. They arent anywhere near what the original parts look like. This battery tray/carrier is a rather unique design for the 1966. I am thinking I want to restore/build it as close to the original as possible, and this may take some doing!

Re: 66 spitfire [Re: furymalc] #442222
06/27/12 11:51 pm
06/27/12 11:51 pm
Joined: Dec 2002
Posts: 3,235
arkansas
L
leon bee Offline
BritBike Forum member
leon bee  Offline
BritBike Forum member
L
Joined: Dec 2002
Posts: 3,235
arkansas
Sometimes I think I know a lot, but I've never seen that setup. Was that for all 66 twins with battery?

Re: 66 spitfire [Re: furymalc] #442241
06/28/12 2:00 am
06/28/12 2:00 am
Joined: Apr 2002
Posts: 1,029
Cadillac, MI
JT441 Offline

BritBike Forum member
JT441  Offline

BritBike Forum member
Joined: Apr 2002
Posts: 1,029
Cadillac, MI
I was able to find everything but that top plate for my 66 Spitfire. The hanger suspends the battery from those rubber spacers. I assume it was to try to isolate the battery from vibration. I wound up using a rubber strap. PM me and I can send you a picture if.you want. I tried to stay close to original but at least that is hidden behind the sidecover. I'm also running Concentric carbs instead od GPs since that's what came with my bike and I understand that the GPs are a pain to live with if you plan to ride the bike.


JT441
'70 B44
'71 T120
'66 Spitfire
'85 Honda Shadow (the SO's bike)
'90 Honda Pacific Coast
'96 Honda Pacific Coast
Re: 66 spitfire [Re: furymalc] #442297
06/28/12 3:14 pm
06/28/12 3:14 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
I have been looking through the parts book.
Although its dated 1966 I think it is more relevant to the early 67 models.Because it shows:- finned rocker cover,rotor inspection cover,alloy rear brake plate ,side panels without the badges and the different battery carrier.
Also no chrome headlight brackets were listed .
Does anyone have the proper parts book? and give the numbers for the carrier top and the special bolt?.
Also the part numbers for the side panel badge fixing screws and nuts.

Cheers Malc

Last edited by furymalc; 06/28/12 3:15 pm.
Re: 66 spitfire [Re: furymalc] #442308
06/28/12 5:14 pm
06/28/12 5:14 pm
Joined: Nov 2009
Posts: 244
UK
V
VicCyclone Offline
BritBike Forum member
VicCyclone  Offline
BritBike Forum member
V
Joined: Nov 2009
Posts: 244
UK
Parts Book 00-5126 shows this set up for 66 frames with A50C prefix. There are 2 different carriers depending upon whether you have 1 X 12V battery or 2 X 6v. 12v= 68-4555, 6v = 68-4569

carrier top is 68-4570 if used with 2 x 6v batteries and 68 4562 if 12v. Bolts are 68-4575 which don't look special from the parts book drawing.

I have the 67 parts book 00-5129 which shows the strap type carrier with no top cover.

The side panel screws and nuts are 5BA x 1/4" dome head countersunk. You can find them in s/s on e b*y in UK. The original p/nos are screw 65-8317 and nut 42-8034

Hope this helps

Last edited by VicCyclone; 06/28/12 6:31 pm.

VicCyclone

1965 A50 Cyclone Clubman
1966 Victor GP
1967 Victor Special
1968 Victor Special
1968 A65L

2009 HD FXDC
Re: 66 spitfire [Re: furymalc] #442332
06/28/12 7:14 pm
06/28/12 7:14 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Thanks VicCyclone,thats great .
I think a lot of the stuff for a 66 is one year only.
How about some of the other 66 Spit owners posting some photos to see what can be achieved and help inspire me.

Thanks again guys for the help.

Malc

Re: 66 spitfire [Re: furymalc] #442428
06/29/12 1:35 pm
06/29/12 1:35 pm
Joined: Aug 2001
Posts: 3,871
Cape Carteret, NC
M
Mr Mike Offline
BritBike Forum member
Mr Mike  Offline
BritBike Forum member
M
Joined: Aug 2001
Posts: 3,871
Cape Carteret, NC
I have a 66 parts book and I find that my 66 A65L which is pretty much original has some 67 stuff on it. The rocker cover is however smooth as shown in the part book. I think BSA at the end of a model year and the beginning of the next year shipped bikes with parts that were available from both years as an inventory adjustment technique. For example my bike got the 67 year updated alternator bracket. Saw similar things in my 68 B25

Top battery carrier is called "Battery strap" is part #68-4570. For unknown reasons, the special bolt with the knurled nut is not given a number although it is shown. The side panel fixing screws are 65-8317 and the nut is 42-8034.

HTH's
Mr Mike

Re: 66 spitfire [Re: Mr Mike] #442451
06/29/12 4:04 pm
06/29/12 4:04 pm
Joined: Nov 2009
Posts: 244
UK
V
VicCyclone Offline
BritBike Forum member
VicCyclone  Offline
BritBike Forum member
V
Joined: Nov 2009
Posts: 244
UK
See my earlier post. You're probably looking at 00-5126 too. Page 44/46 has the 6v battery carrier but without the part numbers for the bolts etc. If you look at page 36/38 the 12v carrier is there with all the part numbers for the hardware.


VicCyclone

1965 A50 Cyclone Clubman
1966 Victor GP
1967 Victor Special
1968 Victor Special
1968 A65L

2009 HD FXDC
Re: 66 spitfire [Re: furymalc] #442454
06/29/12 4:35 pm
06/29/12 4:35 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Hi guys thanks for the help.
Were there two editions of 00-5126 ?, as the one on the DVD doesn't show these parts, but does show the GP carbs and mounts.

Cheers Malc

Re: 66 spitfire [Re: furymalc] #442459
06/29/12 5:01 pm
06/29/12 5:01 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Just checked the 67 parts book ,00-5129 on the DVD ,looks exactly the same to me.
The main reason for investing $75 and buying the DVD was to help with this project.

Malc

Re: 66 spitfire [Re: furymalc] #442470
06/29/12 6:32 pm
06/29/12 6:32 pm
Joined: Nov 2009
Posts: 244
UK
V
VicCyclone Offline
BritBike Forum member
VicCyclone  Offline
BritBike Forum member
V
Joined: Nov 2009
Posts: 244
UK
My 66 book does not have the GP carbs but does have handed monoblocs. I have a 6 page supplement to 00-5126 with the GP carbs.


VicCyclone

1965 A50 Cyclone Clubman
1966 Victor GP
1967 Victor Special
1968 Victor Special
1968 A65L

2009 HD FXDC
Re: 66 spitfire [Re: furymalc] #442482
06/29/12 8:14 pm
06/29/12 8:14 pm
Joined: Apr 2012
Posts: 4
Sophia ,Wv
S
S M Smith Offline
BritBike Forum member
S M Smith  Offline
BritBike Forum member
S
Joined: Apr 2012
Posts: 4
Sophia ,Wv
Hello, noticed you had a 441 Victor same as I. Could you inform me of a link that could help me with reassembling mine? I am dealing with Chemo for Cancer and it robs me of memory for one. I can find all in need for my 650 Triumph of such, but haven't located one for BSA's. I have a orig. B44 & B25/C25 manual and the bikes are different in some locations. Thanks Mark

Re: 66 spitfire [Re: furymalc] #442486
06/29/12 8:50 pm
06/29/12 8:50 pm
Joined: Apr 2002
Posts: 1,029
Cadillac, MI
JT441 Offline

BritBike Forum member
JT441  Offline

BritBike Forum member
Joined: Apr 2002
Posts: 1,029
Cadillac, MI
Hi Mark. I hope the chemo goes well for you. Ruperts Ratio is a great book for BSA unit singles. With that, parts book and the shop manual you should have everything you need. Then post questions here. People like Gordon Grey, Mr. Mike, Steve Erickson and a host of others know a ton about these fun little bikes.


JT441
'70 B44
'71 T120
'66 Spitfire
'85 Honda Shadow (the SO's bike)
'90 Honda Pacific Coast
'96 Honda Pacific Coast
Re: 66 spitfire [Re: furymalc] #442488
06/29/12 8:55 pm
06/29/12 8:55 pm
Joined: Apr 2012
Posts: 4
Sophia ,Wv
S
S M Smith Offline
BritBike Forum member
S M Smith  Offline
BritBike Forum member
S
Joined: Apr 2012
Posts: 4
Sophia ,Wv
Thanks, Doing the 63' TR6 was a trip, but with others help it's on the road, I seem to have lost a spacer on the front axle??

Re: 66 spitfire [Re: S M Smith] #442490
06/29/12 9:10 pm
06/29/12 9:10 pm
Joined: Aug 2001
Posts: 1,823
The Northwoods... Michigan
Steve Erickson Online content
BritBike Forum member
Steve Erickson  Online Content
BritBike Forum member
Joined: Aug 2001
Posts: 1,823
The Northwoods... Michigan
Mark, you won't find a really detailed step-by-step assembly guide. As you mentioned, there are differences... and each year and model has some. The Haynes manual actually shows and explains some assembly, but leaves a lot to be desired. The parts book for your specific year/model is (in theory) numbered by the parts' sequence of assembly.

This Forum can be of great assistance. After studying your books, you can search the archived posts here to see if your question has already been answered (Google makes searching this site much easier)... if not, feel free to start a new thread with your question. You have found your best resource right here.... we are all constantly learning from each other.

Re: 66 spitfire [Re: furymalc] #442529
06/30/12 3:59 am
06/30/12 3:59 am
Joined: Mar 2012
Posts: 168
Draper, Utah
F
Fullminator Offline
BritBike Forum member
Fullminator  Offline
BritBike Forum member
F
Joined: Mar 2012
Posts: 168
Draper, Utah
The knurled nuts are part #68-4568. The special bolts are part #68-4575, but I found them to be too short. There are lots of washers, rubber pieces, nuts, etc. that make up the assembly of this battery tray. It is a unique design only used on the 66. I have been unable to find a lot of them. I am working to restore a 1966 Spitfire as well, and I think I may have to have a machinist make some of these parts. The top tray/strap is different for different models, probably as others have said for 12 or 6 volt battery applications. The parts book does show the top strap part number #68-4570 to go with bikes that have the folding footpegs and the separate U shaped frame assembly at the rear, as the 66 Spitfire does. Perhaps you can find a used one? My parts book and the parts I have match the drawing you posted.
Fullminator.

Re: 66 spitfire [Re: furymalc] #442552
06/30/12 12:20 pm
06/30/12 12:20 pm
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Thanks for all the help Fullminator.

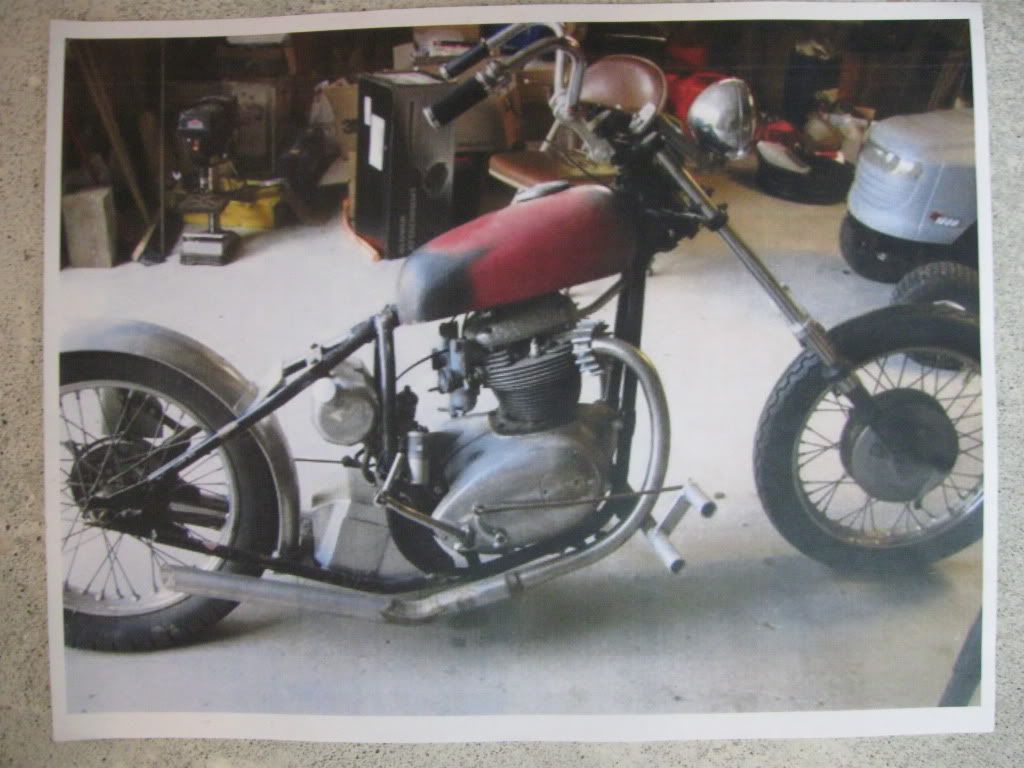

I thought I would show you what I started with,please don't laugh too loud.

Sorry for the poor picture, the computer that it was on died.
Cheers Malc

Re: 66 spitfire [Re: VicCyclone] #445035
07/17/12 4:24 am
07/17/12 4:24 am
Joined: Jun 2009
Posts: 31
North Carolina
G
gpvic Offline
BritBike Forum member
gpvic  Offline
BritBike Forum member
G
Joined: Jun 2009
Posts: 31
North Carolina
Hi,
I was reading the posts and saw that you have a GP Victor. I have GP # 2595 ( or what's left of it) that I'm trying to get together. I bought two at once, one a matching # with chrome bore, etc, and a lesser one with a later model Victor lower end with a Rickman top end. A buddy talked me out of the lesser one and several years later I was forced to sell the good one and bought the other one back, so that's where I'm at now. I have procured quite a few parts but still need some. If you would like to discuss GP lore or parts sources you can email me at classicseast@roadrunner.com I also am doing a DBD and a P11, as well as a few Bultacos. Thanks much for your time. I'm across the Pond in North Carolina. Cheers, Phil Kuykendall

Re: 66 spitfire [Re: furymalc] #518326
12/11/13 10:15 am
12/11/13 10:15 am
Joined: Feb 2012
Posts: 127
northern B.C.Canada
furymalc Offline OP
BritBike Forum member
furymalc  Offline OP
BritBike Forum member
Joined: Feb 2012
Posts: 127
northern B.C.Canada
Another question on spit parts.

The speedo/tacho bracket on the 66 has a round indentation between the clocks ,is this a blanked off hole? or just part of the casting ? and what size is it ?
I have a later type bracket and want to modify it to 66 specs.

Cheers
Malc

Page 1 of 2 1 2

Moderated by  Allan Gill, Jon W. Whitley


Home | Sponsors | Newsletter | Regalia | Calendar | Bike Project | BritBike Museum | Spiders Cartoons | "OLD" BritBike Forum | DVD- Manuals & Parts books | BritBike Stickers & Decals
Upgrade to: Premium Membership | Premium Life Membership | Vendor Membership | Site Sponsor Membership
Powered by UBB.threads™ PHP Forum Software 7.6.1.1
